LED Flat Panel Cabinet-Light

SKU: SY7543BN

12V DC Voltage
43lm Lumens
30,000 Hours Lifespan
6W Wattage

Was £11.95

Special Price: £10.95

Save £1.00

What are Lumens?

Free delivery if order is over £75
Up to 7 year guarantee on lightbulbs
Flat Square LED Cabinet Light
  • Product Description
  • Specifications
  • FAQ
  • Reviews
  • Delivery & Returns
  • Related Products
Product Description

LED Flat Panel Cabinet Light

  • Perfect Alternative to Halogen - Designed to offer superior light output, our Flat Panel Cabinet Light has a diffused cover to mimic the appearance of halogen, while having all the benefits of LED.
  • Ultra-slim Design - Our panels are only 6mm thick, offering a flat cabinet light, perfect for any kitchen style.

Our LED Flat Panel Cabinet Lights offer the best in LED technology, providing the ultimate alternative to halogen lights. These lights are fitted with a diffused cover, which allows the light to mimic halogen light, and has no visible LED points.

The lights use only 6w per light, so they cost less to run than halogen alternatives, and with a lifetime of around 30,000 hours, they will last much longer too!

This product has a sleek brushed nickel finish, and provides a natural white glow, perfect for lighting kitchen cabinets.

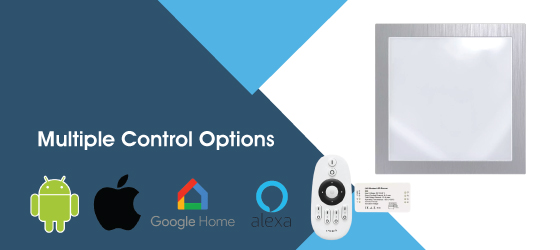

We offer a whole range of ways to control and operate your LED cabinet lights.

  • The Basic Set Up - Switches the lights on and off, using a light switch or plug socket.
  • Remote Dimming - Using our unique remote control, you can dim the brightness from 1-100% and turn the cabinet lights on & off. You can view this product by clicking here.
  • Sensors - We offer a large range of door sensors and Infra-Red sensors. Using the door sensors you open the door and the lights switch on and close the door and they switch off. With hand movement sensors you swipe your hand to turn on and swipe to turn off. You can find our selection by clicking here.
  • Mains Dimming – When you want to control your lighting on a traditional wall dimmer. You would need to install a dimmable LED Driver & a compatible wall dimmer. Please find our Dimmable led driver by clicking here and our range of wall dimmers by clicking here (Please note: The dimmable led driver has a minimum load of 3 watts to operate correctly).

Technical Specifications:

  • 12Vdc
  • 6w
  • 4000k Colour Temp
  • 30,000hrs Lifetime
  • IP20 Rated

Please note, an appropriate LED power converter is required to run these lights (see below);

15w Power Converter (will run up to 2 lights)

20w Power Converter (will run up to 3 lights)

Specifications
  • Colour Neutral White
  • SKU SY7543BN
  • Beam Angle 110° Refers to the degree of width in which the light illuminates from the source.
  • Width 100mm The width of the product. Normally measured in mm unless otherwise stated.
  • Voltage 12V DC The operating voltage of the product. 220-240v AC is UK mains voltage (What comes out of your plug sockets). So if the voltage shown is below 220v then you will more than likely need a transformer for the light to operate.
  • Length 100mm The physical length of the product
  • Height 6mm The overall height of the product at the tallest point.
  • Average Hours 30,000 Hours The average number of hours you would expect the light to run. N.B This is the manufacturers guild line, not a warranty period.
  • Delivery Time Available Next Day if Ordered Before 3pm
  • Cable Length 1.5m
  • Light Source LED The type of light, such as LED, CFL (Compact fluorescent), Halogen etc
  • Finish Nickel The overall visible finish of the product. Such as stainless steel, chrome, white etc.
  • LED Colour White The colour of light emitted from the light source. Such as Cool White, Warm White, Red etc
  • IP Rating IP20 Ingress protection rating. Classifies the degree of protection against water and dust.
  • Colour Brushed Nickel Finish
  • Lumens 43lm A measure to the brightness of a LED Light. Example being 320 lumens would be the equivalent in brightness to a old fashioned 50w Halogen spot light.
  • Lamp Base Integrated LED Indicates the size of the electrical connection at the bottom of the light source. Such as screw or bayonet etc. If you are confused with what you require please feel free to contact us for us.
  • Wattage 6W The total electrical power used of the light. A higher wattage no longer guarantee’s that the light is brighter. EG: there are LED products which are 5w which is equal in brightness to a 50w incandescent bulb.
  • CRI >83 Stands for colour rendering index. This is a measure of the ability of the light source to reproduce colours of different objects positively comparing with an ideal or a natural light source.
  • Bulb included Yes
  • Colour Temperature 4000K Colour temperature in K
Here are some answers to frequently asked questions asked by other customers. Alternatively, you can click Ask a Question and we will get back to you asap.

Are the LED Flat Panel Cabinet-Lights (SKU: SY7543BN) linkable or is a separate cable required from the 12Vdc LED Power Converter to each of them?

LED Flat Panel Cabinet Light - where do the cables for this light go? Do they have to run inside the kitchen cabinet or can they run along the underside of the cabinet? Thanks

Can a pair of these be mains wired without having to have a driver?
