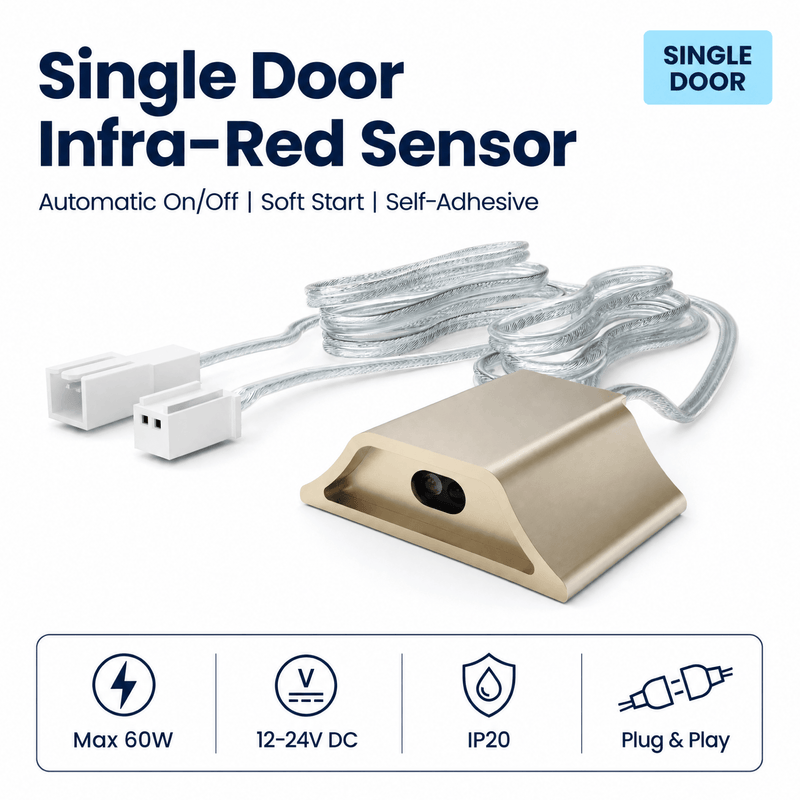

Infra Red Single Door Sensor, 12-24v DC

Input Voltage
12-24v DC
Input Voltage
IP Rating
IP Rating
The total electrical power used of the light. A higher wattage no longer guarantee’s that the light is brighter. EG: there are LED products which are 5w which is equal in brightness to a 50w incandescent bulb.
Max 30w-60w
3 Years
In stock

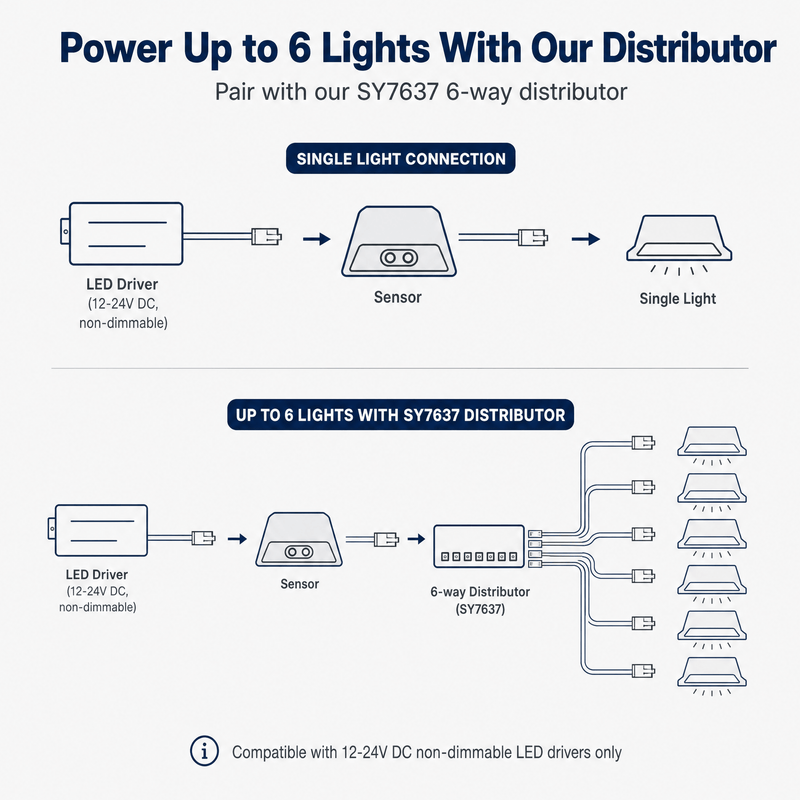

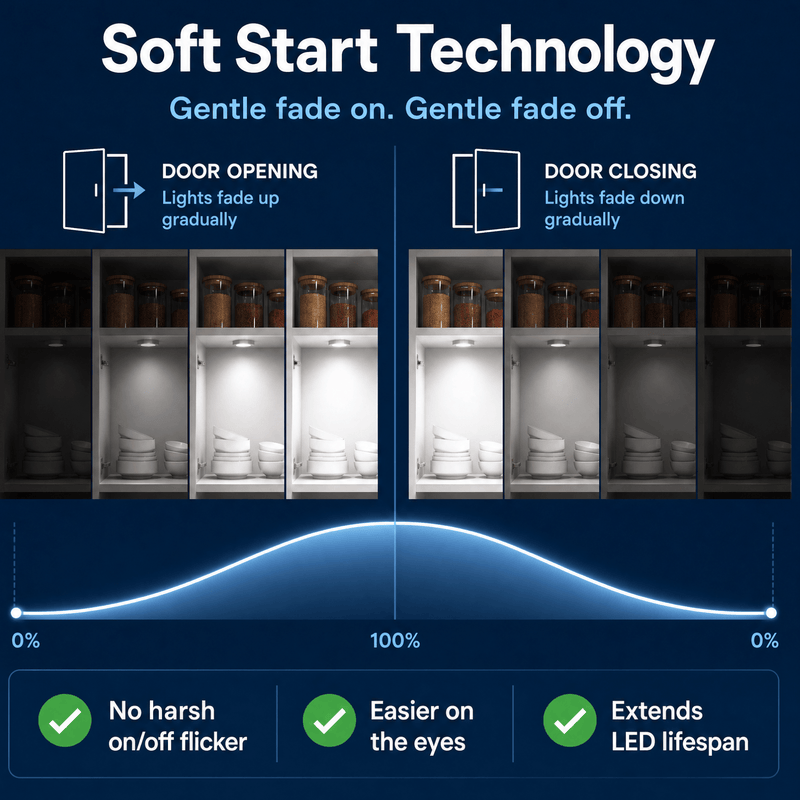

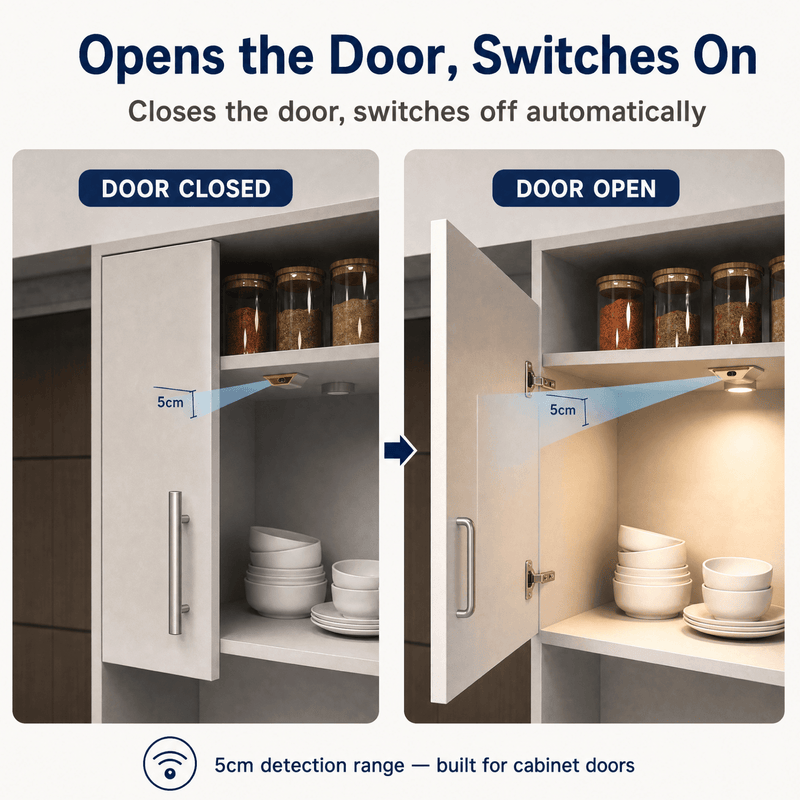

The new soft-start infrared door sensor switch is designed to work with a single cabinet or cupboard door, by automatically turning a light on or off when a door is opened or closed. It is compatible with all of our 12V-24v DC LED lighting ranges, and offers a simple plug and play connection system. The unit includes a connection for one light, however, for more than one light, a 12-way distribution block is available to purchase separately, item code SY7637. Features a simple self-adhesive fixing method.

Note: This sensor is only compatible with non-dimmable LED drivers.

  • Power supply: 12Vdc to 24v DC
  • Cable length: 800mm
  • Maximum Wattage: 30W (12Vdc) 60w (24Vdc)
  • IP Rating: IP20
  • Mounting: Surface

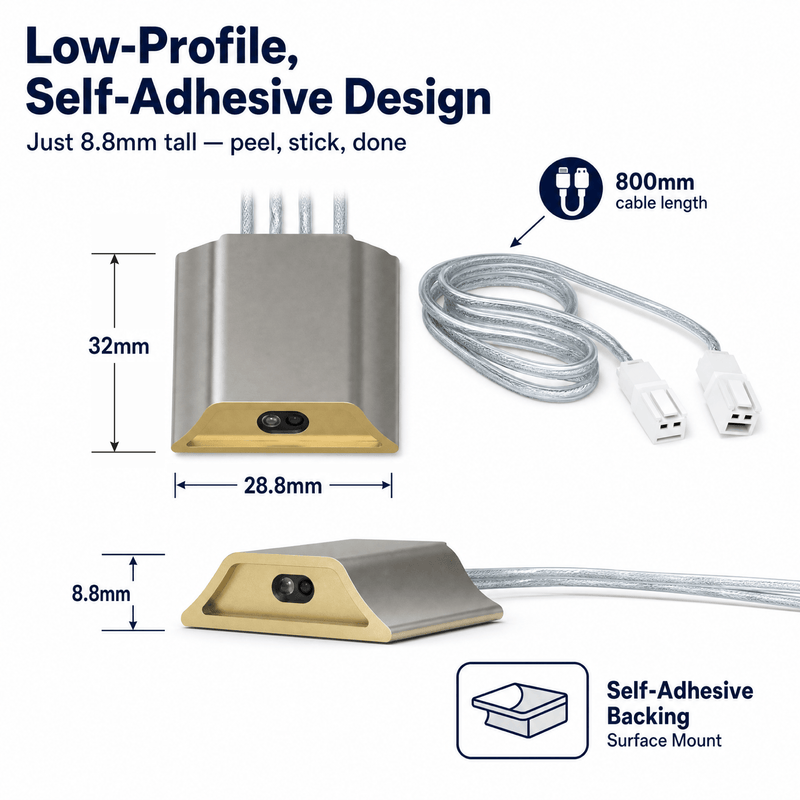

  • Dimensions: 32 x 8.8 x 26.6mm


£12.49 £14.99 Was £29.95 Save £14.96
Buy more, save more!
  • Buy 5 £10.42 £12.50 save 17%
  • Buy 10 £9.99 £11.99 save 20%
  • Buy 20 £9.71 £11.65 save 22%
Up to 5 year guarantee on lightbulbs
Free delivery if order is over £75
Infra Red Single Door Sensor, 12-24v DC
£12.49 £14.99 Was £29.95 Save £14.96
More Information
Quick Order Code SEN-1224-SD
Input Voltage 12-24v DC
Width 32mm
Height 8.8mm
IP Rating IP20
Length 28.8mm
Power Max 30w-60w
Warranty 3 Years
