Pack of 3 Recess Mounted Aluminium LED Profiles (Extrusion) for all types of LED Tape, 1M
- Pack of 3 LED profiles
- Stunning anodized aluminium finish
- 1-metre long
- 25mm wide (including overlapping wings)
- Supplied with frosted cover, end caps and mounting brackets
- Requires a 17.5mm wide x 15mm deep cut-out
- 5-year warranty
When you bought an incandescent bulb you knew that a higher wattage meant a brighter light. However, wattage really measures power consumption, not brightness. Lumens measure brightness. You can use the chart below to match the wattage of an incandescent to its LED counterpart. LEDs use less power and save money.
Warm lighting is similar to conventional lighting and has a softer feel. This lighting is perfect for living rooms and bedrooms.
Daylight - The colour of the lighting is used to represent ‘daylight colour’ indoors. It has neither the softness of warm white or the starkness of cool white.
Cool white - Is a brighter whiter light and is more suited for the bathroom or kitchen.
Pack of 3 Recessed LED Aluminium Profiles
This LED profile comes in a pack of three, is installed recessed and comes with a frosted diffuser that distributes light at a 120-degree beam angle. With this, the strip light’s illumination is spread out evenly, and the individual LED chips are blurred!
What is an LED profile, and what can it do? LED profiles serve as a housing that guards your LED strip lights against dust, dirt or curious fingers. Since LED strips are exposed, ribbon-like circuit boards, they are prone to damage, especially if the area where you mount them is within reach. In addition, LED profiles can make your LED strip light installation look more polished and clean!
Stress-Free to Mount
Installing this LED profile is quick and easy! You don’t have to worry about anything since It comes with everything you need, including end caps, brackets, and screws. Just make sure to review the mounting guidelines, clean the surface where you intend to install the profile and prepare all the necessary tools and equipment in advance!
You can effortlessly cut this LED profile using a hacksaw or other cutting equipment. So, if your project requires a shorter length, just trim away! Alternatively, if you need to extend it, you can butt several of these LED profiles together until you get your desired length. Always be safe when installing, and if you're not confident doing it yourself, call an electrician.
Perfect for All Strip Lights
If you are in the market for an LED profile that can accommodate various LED tapes, check out this LED profile! It is ideal for all our LED tapes, so you can choose whatever you want! It’s wide enough to account for different sizes, allowing you to use this profile almost anywhere. You can incorporate it in your living room, home office, staircase, bedroom, garage, dining room, kitchen, storage room, laundry room, hallways, and bathroom!
Just keep in mind, if you plan to use this LED profile inside your bathroom, guarantee that you have an IP65 and up LED strip light. The profile itself is IP20-rated only, so it cannot keep the water out. Therefore, your strip light should have enough protection in itself.

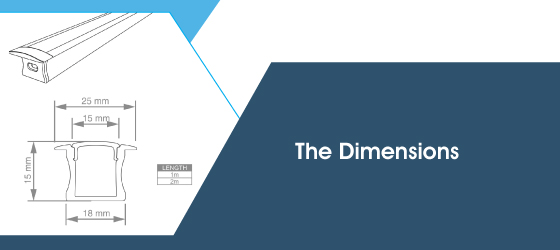

The Dimensions
When installing your LED profile, it is crucial to be aware of their dimensions besides learning how to mount them. What will knowing this do for your installation? Knowing its measurements will enable you to estimate the quantity you have to purchase more accurately and with very minimal excess. If you wing in and disregard this information, you may end up purchasing more than you actually need. In addition, because it is a recessed profile, you must know its required cut-out hole!
So, keep in mind that this LED profile is 15mm tall, 25mm wide, and 1 metre long. It has an internal width of 12.35mm and requires a 17.5mm cut-out hole!
Idea for Indoor Use Only - IP20 Rated
As stated above, this LED profile has an IP20 rating only. This means it’s suitable for indoor applications, away from areas where water is constantly present. However, since it can fit different types of LED strip lights if you pair it with a waterproof one, you can use this LED profile in wet zones like your bathroom. What matters is that the strip light has adequate protection against water and other liquids. Still, if you want to be more certain if the strip light is constantly exposed to a significant amount of water, it’s best to consider using an IP65 LED profile.
Aside from that, this LED profile has an anodised aluminium finish, so it can effortlessly blend in with whatever design scheme you have or would have, be it traditional, modern, retro, rustic, etc.
5 Year Warranty
We offer a 5-year warranty with this LED profile bundle so that you can use it to the fullest for a long time with peace of mind. Shopping online has pros and cons. While it's super convenient since you can purchase almost anything without stepping out of your home and walking around the store, there’s no guarantee that the product you’ll receive will have the same quality as the images you saw.
So, with this extended warranty period, we hope that our confidence in this LED profile bundle will be reflected, giving you more assurance and encouraging you to purchase! If you have any questions, feel free to call or email us!
| Beam Angle | 120° |
|---|---|
| Internal Width | 12.35mm |
| IP Rating | IP20 |
| Height | 15mm |
| Dimmable | Dimmable |
| Length | 1000mm |
| Cut Out Hole | 17.5mm |
| Width | 25mm |
| Finish | Anodized aluminium |
| Warranty | 5 Years |
