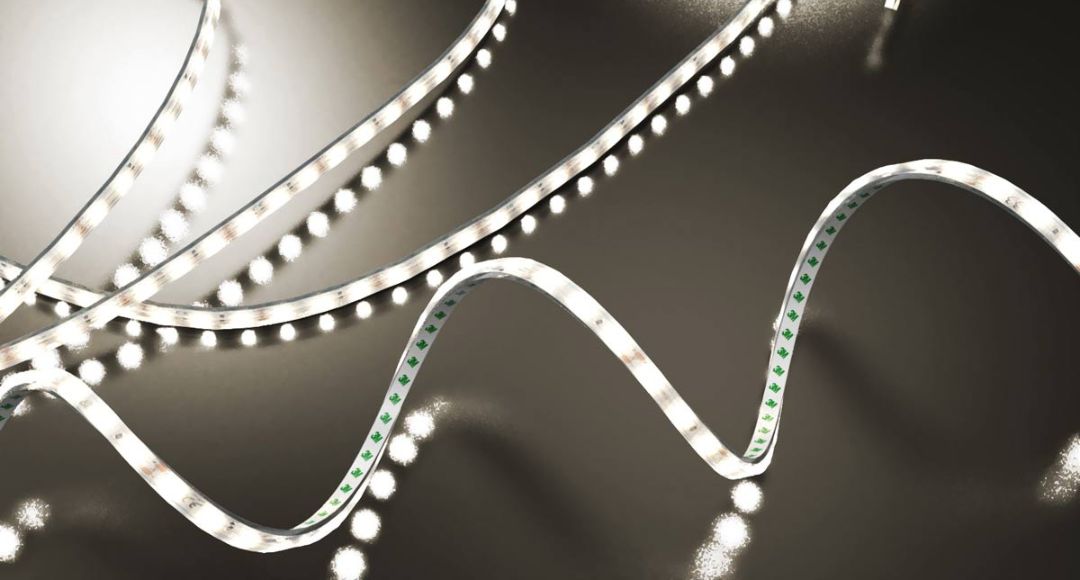

UK Guide: How to Calculate Power Requirements for Your LED Strip Lights

To calculate an LED strip's connected load, multiply its watts per metre by the length being powered. Add the loads of all runs sharing the supply. Then choose the correct voltage and driver type, following the driver's loading, temperature and derating instructions.

Strip load (W) = watts per metre (W/m) × length (m). This is the starting load calculation, not a complete installation design. A universal “add 20%” rule cannot replace the selected components' instructions.

Power Up Your Project Right: Calculating LED Strip Light Requirements in the UK

The supply must suit the strip, controls and installation. An undersized driver can overload; an otherwise suitable constant-voltage driver with a higher wattage capacity does not force its full rated wattage into the strip. Check permitted minimum loading and dimming behaviour as well as maximum output.

DIY Basics: Key Electrical Terms You Need to Know

Voltage (V)

Match the driver's output voltage to the strip's specified input. The range includes 12V and 24V products, but these are not the only strip voltages that exist. AC and DC are different supply types.

Current (A or Amps)

For a DC load, current is power divided by voltage. A 24W load at 12V draws 2A nominally. Cables, connectors and controllers must support the intended current.

Power (W or Watts)

Watts describe electrical power. Output capacity is the amount the driver can supply under stated conditions; mains consumption also includes losses.

Watts per Metre (W/m)

This is the strip's specified power per metre. Use the exact product and maximum intended operating setting, particularly with multi-channel strips.

Your DIY Formula: Calculating the Right Power Supply Wattage

Step 1: Determine the Voltage of Your LED Strip Lights

Read the strip specification and match the required voltage and supply type. Never connect a low-voltage strip directly to mains.

Step 2: Find the Watts per Metre (W/m) of Your LED Strip Lights

Use the current product specification. For RGB, RGBW or tunable-white systems, confirm how the stated power relates to channels and maximum operation.

Step 3: Measure the Total Length of LED Strip Lights You Will Be Using

List each run separately and allow for the product's cutting intervals. Add all runs powered from the same driver; the gaps between illuminated runs are cable lengths, not extra strip length.

Step 4: Calculate the Total Wattage Required

For an illustrative 9.6W/m strip, 5m × 9.6W/m = 48W. If different runs use different strips, calculate each load separately and add the results.

Step 5: Check Loading, Headroom and Derating

Follow the selected driver's rated output and any reduced capacity at the installation temperature or mounting conditions. Check the strip and controller instructions too. Where a manufacturer specifies operation at no more than 80% capacity, a 48W load requires at least 48 ÷ 0.8 = 60W capacity. This is a conditional example, not a rule for every driver.

DIY Tips: Factors That Can Influence Power Requirements

Multiple Runs of LED Strips

Add all connected loads, but also confirm how runs will be fed. A driver with enough total wattage does not make any series or parallel arrangement suitable.

Voltage Drop (Especially for Longer Runs)

Cable length and size, current and the strip's maximum run length affect performance. Follow the manufacturer's feeding arrangement; do not join driver outputs together unless explicitly permitted. A more powerful driver alone does not cure voltage drop.

Controllers and Dimmers

Check controller total and per-channel current limits at the chosen voltage. Match the control method to the driver and strip. A mains dimmable driver and a low-voltage controller use different arrangements; compatibility must be confirmed.

Future Expansion

Allow for planned additions only within the permitted loading range. Check minimum-load requirements and space, ventilation and wiring capacity before choosing a larger supply.

Selecting Your Power Source: Matching Your Calculations

Constant Voltage vs. Constant Current

The strip examples below require a specified constant-voltage DC supply. Constant-current drivers regulate current and are not interchangeable with constant-voltage supplies. Match the product requirements, not just the wattage.

IP Rating

Check the environment for the driver, strip and every connection. An IP-rated strip does not protect an exposed driver or an unsealed cut end. Bathroom and outdoor suitability need assessment for the whole installation.

Safety Certifications

Use products with appropriate documentation and installation instructions. A marking alone does not establish compatibility between components. Have an electrician handle fixed mains wiring and confirm the installation requirements.

DIY Example: Powering Under-Cabinet LED Strips

Our warm white 5W/m LED strip is specified as 12V DC, with cutting intervals of 50mm. Two illustrative runs of 2.4m give 4.8m total:

A 30W driver would carry this 24W strip load at 80% of its nominal rating. That arithmetic does not verify any particular driver: temperature derating, permitted loading, controller needs and wiring must still be checked. This is a calculation example, not a tested installation or a complete shopping kit.

For comparison, our 2700K COB strip is specified at 24V DC and 14W/m. The same 4.8m length would give 67.2W, demonstrating why the exact strip matters.

Power Your Lighting Project Correctly! Browse Our Range of LED Power Supplies

Browse LED drivers alongside LED tape. Send us the product, each run length, cable layout and desired controls if you need selection help.

Our in-house UK cut-and-solder service prepares suitable strip to agreed lengths within product limits. Maximum runs vary by product. Next-day preparation may be possible depending on order size; ask our team to confirm preparation and delivery timing.

Get the Watts Right: Ensuring Optimal Performance for Your LED Strip Lights

Before ordering, confirm voltage, watts per metre, every run length, driver loading conditions, controller limits, cable sizing and environmental suitability. Keep the calculations with your component list so your installer can check the complete arrangement.
