Hexagon LED light kits for garages, workshops and gyms

What Are Hexagon LED Lights?

Hexagon LED lights are modular ceiling-mounted lighting systems formed from T5 LED tubes arranged into connected hexagonal frames. Commonly referred to as hexagon lights or hexagon lighting, this format is engineered to deliver wide-angle overhead illumination with minimal shadowing. The honeycomb layout distributes light evenly across floors, vehicles, worktops, and walls, making it more effective than linear systems such as LED strip lights in large working environments.

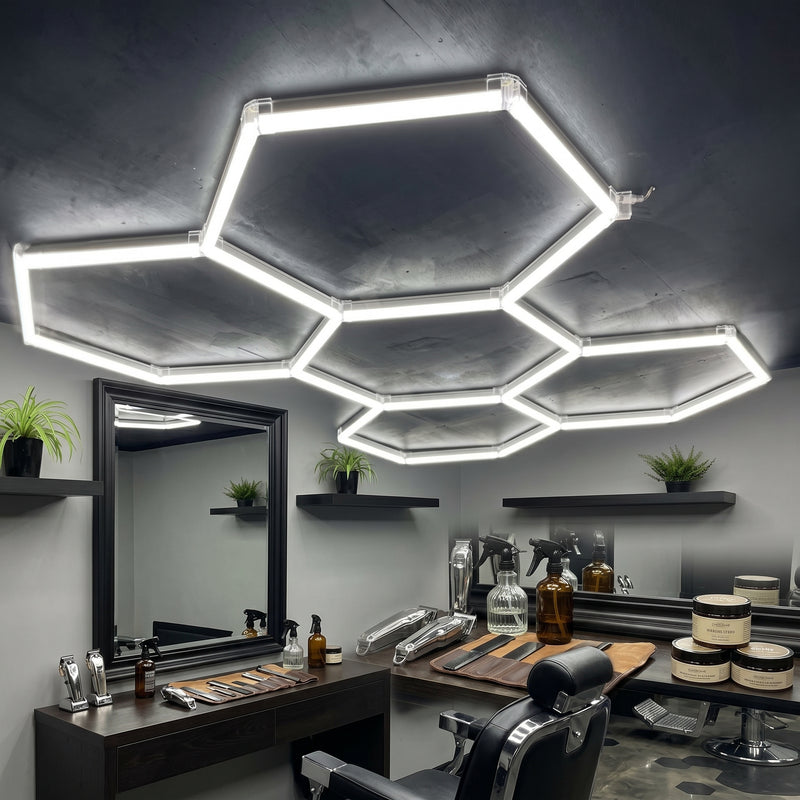

Available in kit sizes from 1 hex to 50 hex, these systems scale from compact installations to full commercial coverage. Two core ranges are offered: cool white (6500K) for high-visibility task lighting and RGB colour changing for visual and ambient applications. Both ranges are available in white and black body finishes to suit different ceiling types and interior styles.

Designed to illuminate commercial environments, hexagon LED lighting is commonly used in service or utility areas, showrooms, and retail spaces. All kits operate on AC100-240V, making them compatible with the standard UK mains supply.

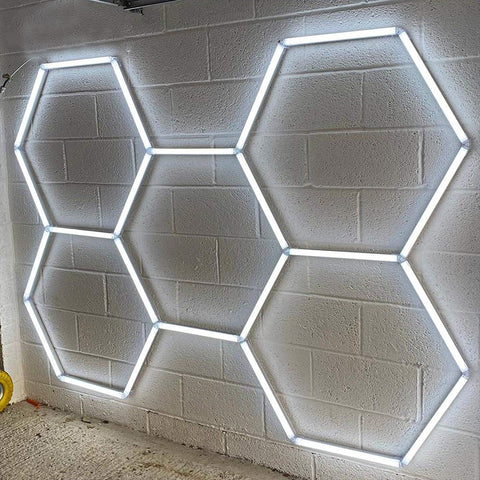

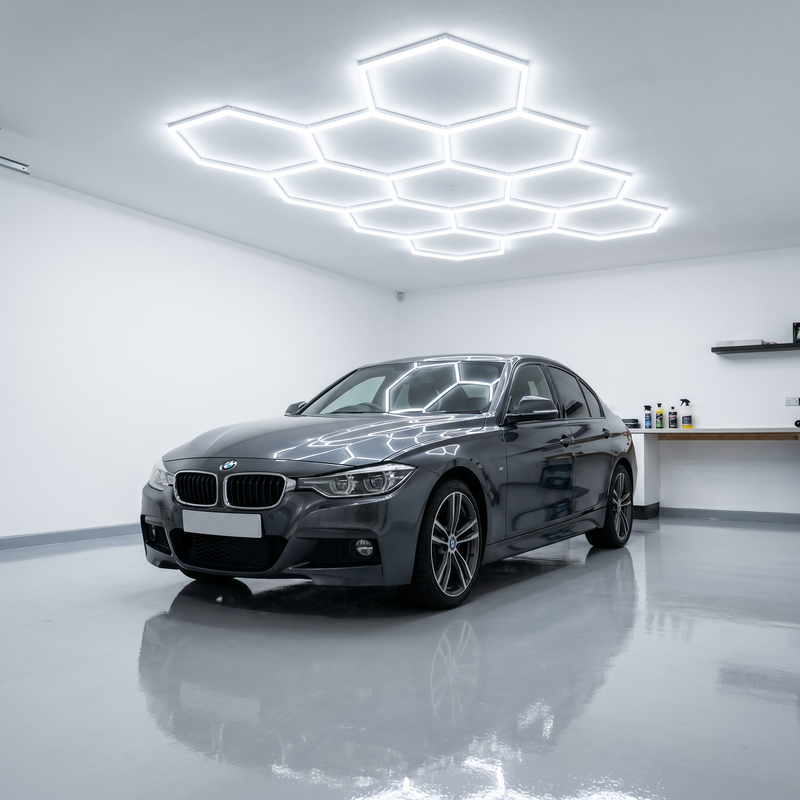

Cool White Hexagon LED Kits (6500K)

The cool white range delivers 6500K output, producing crisp, high-contrast light suited to precision work, such as detailing and inspection. This colour temperature enhances visibility by sharpening edges and surface definition, making it easier to identify imperfections or inconsistencies during tasks.

With a CRI >80, surfaces, paint finishes, and materials appear accurate and true-to-life. A high colour rendering index is particularly important when assessing paint finishes, materials, and surface conditions under artificial lighting. This makes hexagon ceiling lights particularly effective in automotive and workshop environments where visual accuracy is essential.

The range spans from a compact 1 hex kit producing 5,040 lumens at 42W to a 50 hex configuration delivering 155,400 lumens at 1,295W. Each individual tube operates at 7W with an output of 840 lumens and measures 410mm in length. Every kit includes the LED tubes, connectors, mounting hardware, and power cable required for installation.

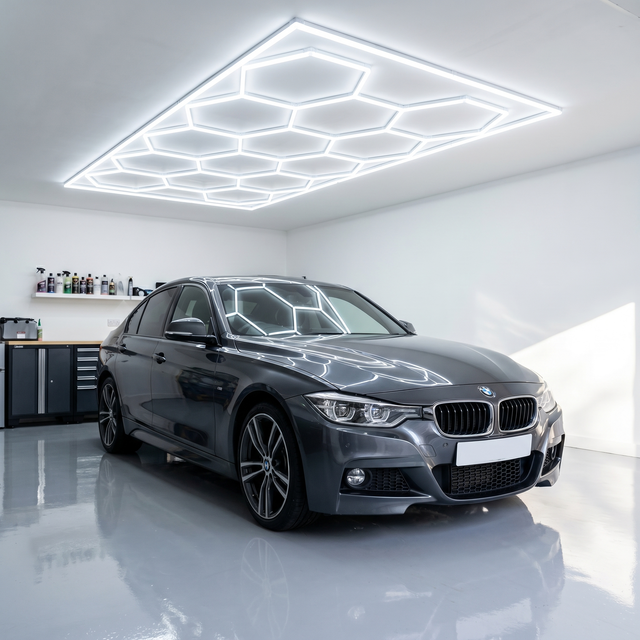

All cool white kits are supplied with a 5-year warranty and are available in white and black body finishes. Options such as the 5 hex kit and 14 hex kit cover common installation sizes, while the 14 hex with border adds a continuous outer frame for a more defined visual finish.

These hexagon LED ceiling light systems are flicker-free and non-dimmable, providing stable output for consistent working conditions. All cool white kits are IP20 rated and intended for dry indoor environments only.

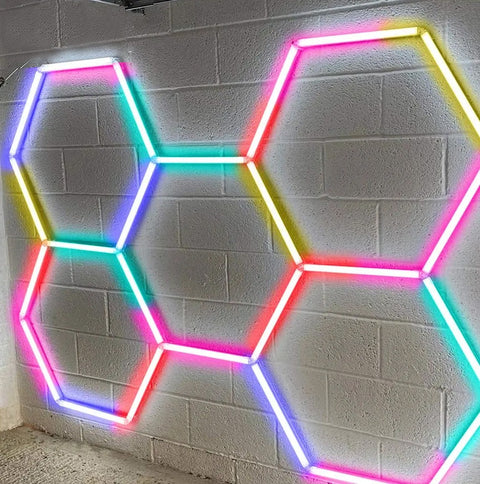

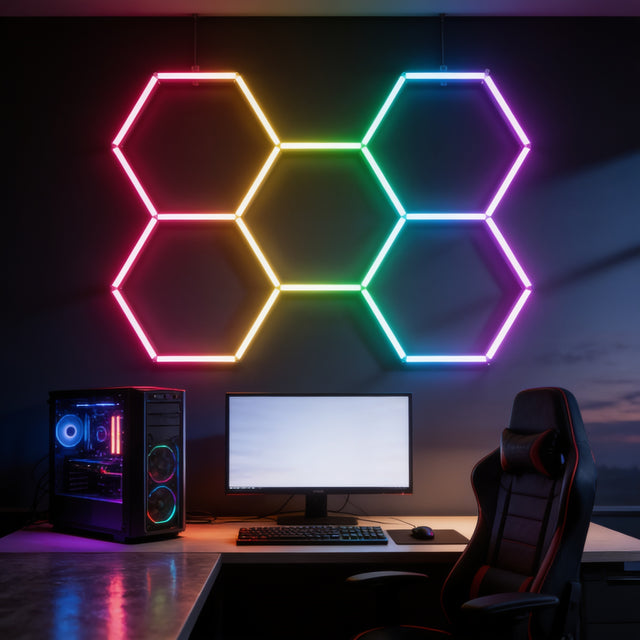

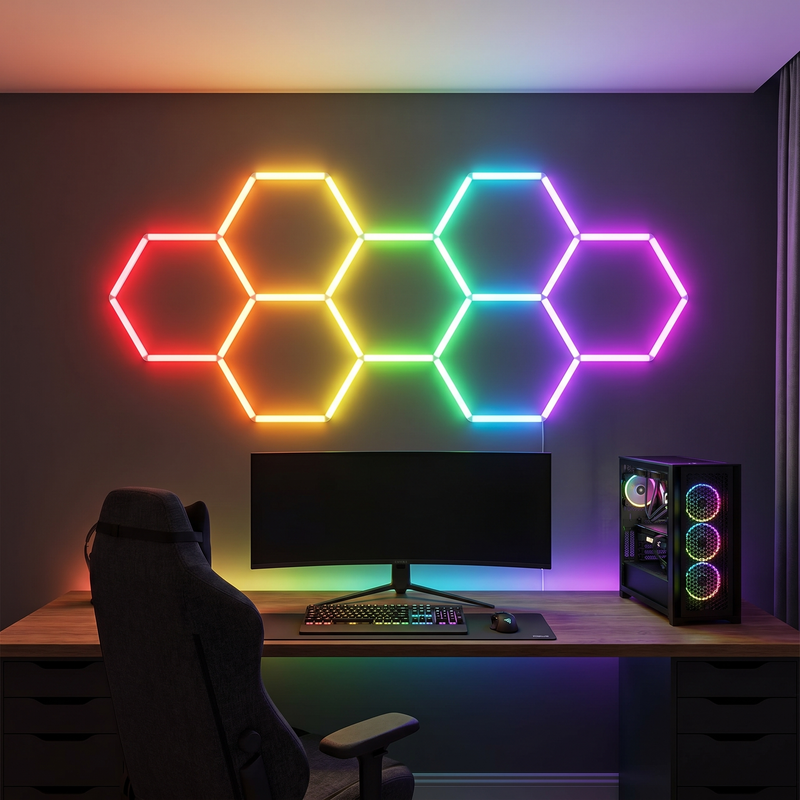

RGB Colour Changing Hexagon LED Kits

RGB hexagon lights provide a colour-changing lighting solution designed for visual environments that require flexibility and atmosphere. These hexagon lights RGB systems offer dynamic effects, including chasing patterns, fading transitions, and sound-reactive modes, making them suitable for most commercial spaces.

Each system is controlled via a Bluetooth app on iOS or Android, as well as a 2.4G RF remote, both included in the kit. This allows full control over colour selection, brightness, and lighting effects without additional components.

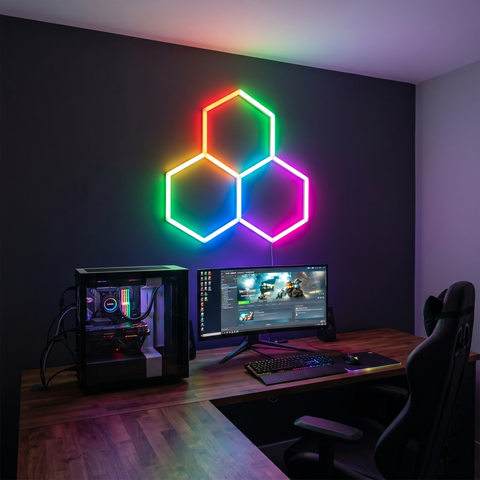

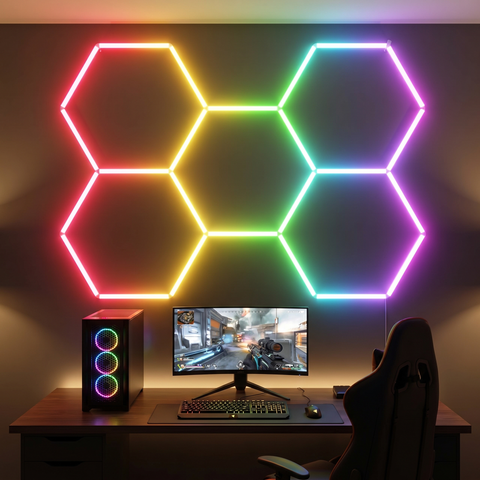

Colour-changing hexagon lights are available in multiple configurations, including the 3-hex RGB kit and the 7-hex RGB kit. Each kit includes a defined number of tubes: 17 in the 3-hex RGB kit, 25 in the 5-hex RGB kit, and 31 in the 7-hex RGB kit.

All RGB kits operate on AC100-240V and are supplied with a white body finish only. They are also rated IP20 and include a 3-year warranty, making them suitable for controlled commercial environments.

Where to Use Hexagon LED Lights

Hexagon LED lights are primarily used in commercial environments where strong, uniform overhead lighting is required alongside a structured visual layout. Their design is engineered to maximise light coverage, delivering consistent brightness across wide areas without the patchiness often associated with traditional fixtures.

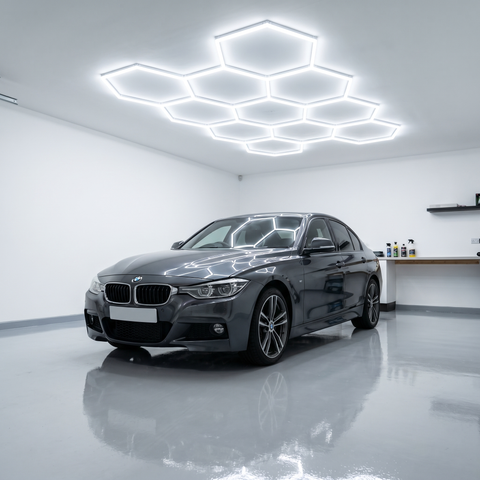

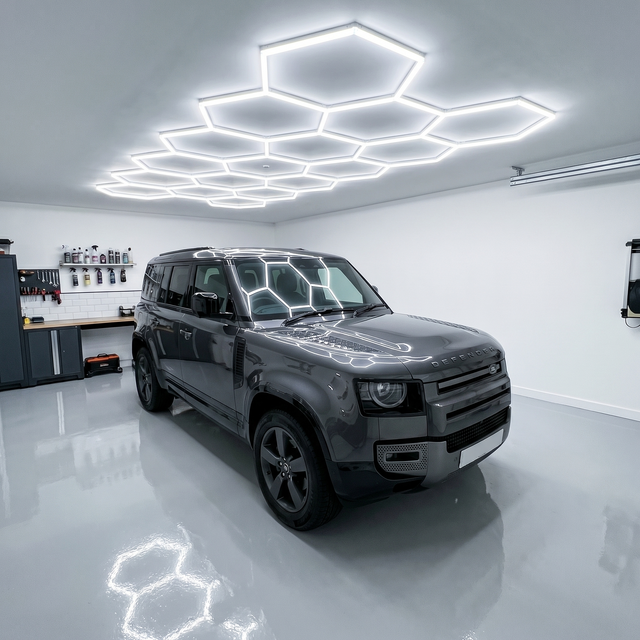

In auto detailing bays and car workshops, the honeycomb ceiling pattern reduces shadowing around vehicles, allowing technicians to work with consistent visibility across body panels and surfaces. This makes hexagon garage lights a practical choice for precision-focused automotive work.

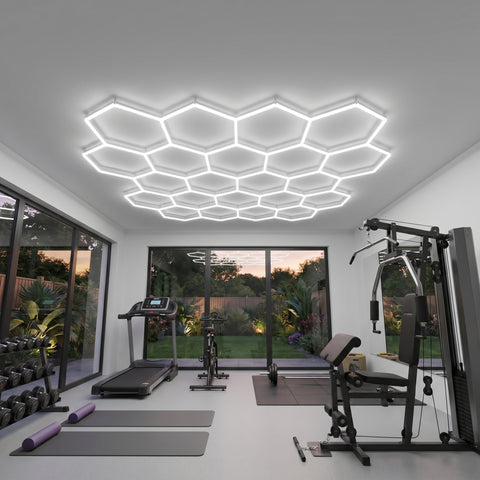

Mechanical garages and MOT stations benefit from the high lumen output, which supports inspection accuracy and improves working conditions across larger service areas. In gyms and fitness studios, hexagon gym lights combine functional brightness with a defined geometric ceiling feature, contributing to a modern interior design.

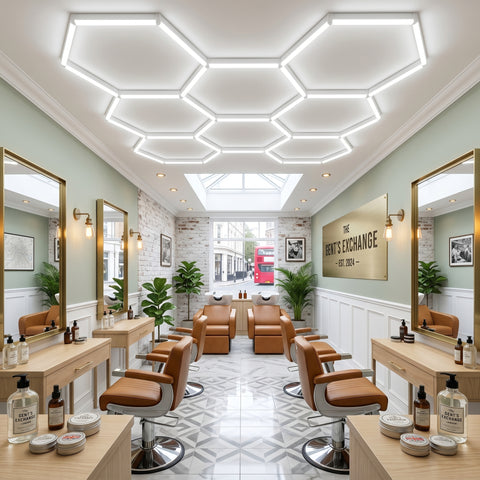

Retail showrooms and dealerships use hexagon lighting to create a premium environment that clearly highlights products while maintaining visual consistency across the space. In barber shops and salons, RGB variants add ambient lighting effects while still providing sufficient functional illumination for daily tasks.

All installations are ceiling-mounted. The modular structure allows layouts to scale from small workshop lighting setups using 1 to 5 hex kits to larger commercial lighting installations using 14 to 50 hex systems.

How to Choose the Right Hexagon Kit Size

Choosing the correct hexagon LED light kit means matching the kit's footprint to the area you want lit, then checking the light level suits the work. Each hexagon gives 5,040 lumens, so even a small kit is bright: a 5 hex kit over a single garage produces around 800 lux, more than a typical workshop needs.

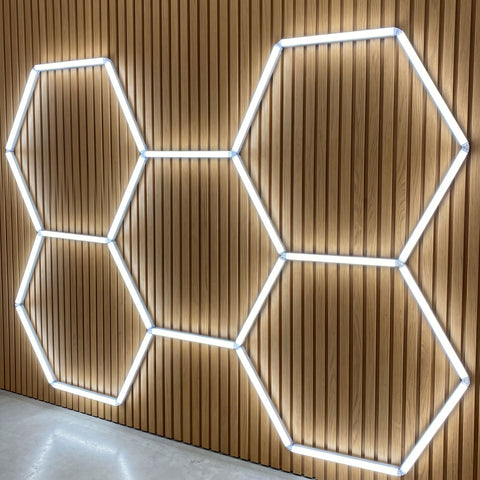

Single garages, home gyms and workshop benches are usually lit with a 3 to 8 hex kit. The 5 hex kit, 2.2 by 1.6 metres and 20,160 lumens, is the most popular size and covers the bonnet or bench end of a garage. An 8 hex kit at 2.3 by 2.2 metres suits regular work on a car or a full home gym.

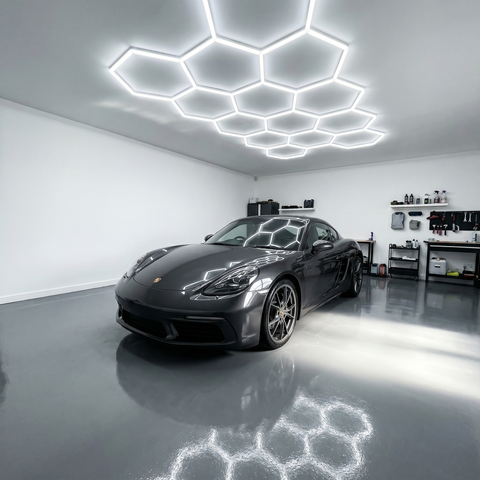

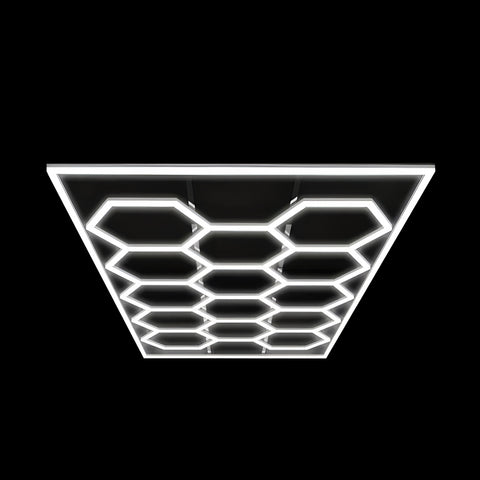

Detailing bays, full-length garages and salons suit 11 to 17 hex kits. The 14 hex kit is 3.8 metres long, runs the length of a car and gives about 1,700 lux over a 3 by 5 metre bay, the level paint correction needs. The 14 hex with border adds a continuous outer frame for a more finished ceiling. For a double garage, fit one kit per bay rather than one large kit in the middle.

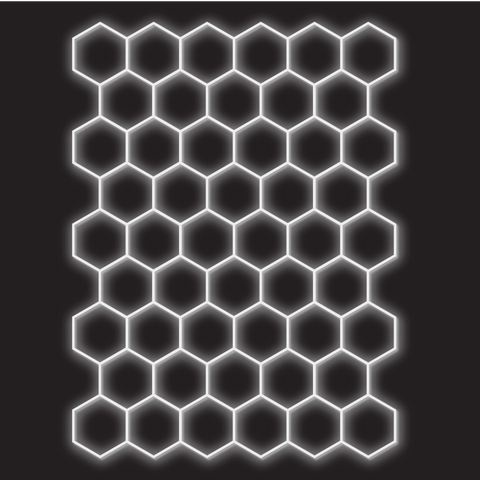

Showrooms, warehouses and commercial units use 22 to 50 hex kits, from 69,720 up to 155,400 lumens, with the 50 hex covering 7.5 by 3.8 metres. Every kit is ceiling mounted, so measure the ceiling before ordering, and remember that kits can be fitted side by side for wider coverage.

RGB kits are available in 3, 5, and 7 hex options and should be selected based on layout size rather than output. All systems are ceiling-mounted, so measuring the available ceiling space is essential before ordering. Remember that multiple kits can be installed within the same area for extended coverage.
