What Does an LED Driver Do?

LED lighting may look simple once everything is installed. But behind the scenes, they need the right electrical supply.

Many LED products can't connect directly to a standard 230V UK mains supply. They need controlled power at the correct voltage or current.

That's a job for the LED driver!

An LED driver controls and regulates the electrical power supplied to an LED light. In many systems, it also converts mains electricity into low-voltage power. It's like a power manager between the mains supply and your LEDs.

LED drivers aren't just an optional extra you throw into the basket. Without the correct unit, some LED products can't work properly.

In this guide, we will cover:

• What an LED driver is
• Why LEDs need drivers
• How an LED driver works
• Constant voltage vs constant current
• How to match voltage and wattage
• When you need a dimmable driver
• Common LED driver problems
• Where LED drivers are normally used

What Is an LED Driver?

An LED driver is designed to provide LEDs with suitable electrical power.

In many UK installations, the input is 230V AC mains electricity. The output may then be converted to lower-voltage DC power. For example:

• Input: 230V AC mains
• Output: 12V DC, 24V DC or another specified output

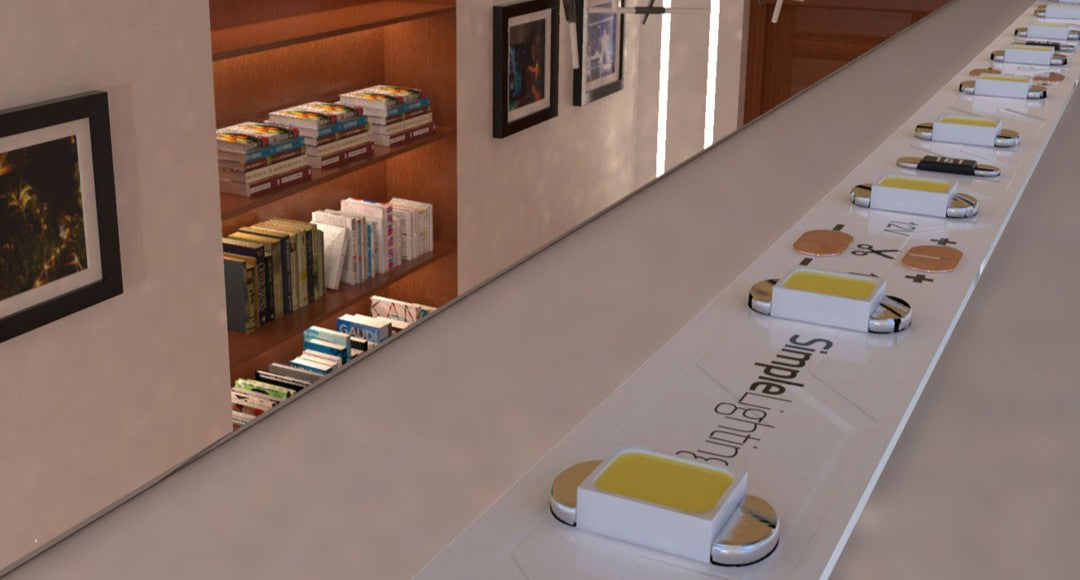

LED strip lighting is a common example. Most 12V and 24V LED strips need a suitable low-voltage driver.

However, an LED driver does more than simply lower the voltage. It also controls the electrical output supplied to the LEDs. Depending on the design, it regulates either voltage or current.

You may also come across terms such as:

• LED power supply
• LED transformer
• LED PSU
• LED driver

These terms are often used loosely, especially with low-voltage lighting. But they're not always technically interchangeable. The specifications matter more than the wording on the box.

Always check the input, output, wattage and driver type before choosing a product.

Why Do LED Lights Need a Driver?

LEDs are semiconductor devices. They need controlled electrical power to operate correctly.

A 12V LED strip cannot safely use 230V mains electricity directly. The driver provides the electrical conditions that the strip needs.

A suitable driver can:

• Convert incoming electrical power
• Provide the required voltage or current
• Maintain a controlled output
• Manage normal supply fluctuations
• Help prevent excessive current
• Support stable LED operation

In simpler terms, the LEDs need the right type of power. The driver makes sure they receive it.

Not every LED fitting has a separate driver sitting nearby. Some products have an integrated driver built into the fitting. Others use a separate external driver.

What Happens Without the Correct Driver?

Using the wrong driver can cause obvious problems. It can also create issues that appear slowly over time.

Possible symptoms include:

• Flickering
• Low brightness
• Unstable light output
• Excessive heat
• Poor dimming
• Early component failure
• LEDs that will not switch on

The exact symptom depends on the mismatch.

At any rate, the wrong voltage can damage the LEDs. And an undersized driver may overload or cause unstable performance.

So yes, the driver matters.

How Does an LED Driver Work?

The easiest way to understand an LED driver is to follow the electricity. For a typical low-voltage system, the journey looks like this:

230V AC Mains → LED Driver → Controlled Output → LED Light

The process breaks down into three simple steps.

1. The driver receives electrical power from the mains.
2. It converts and regulates that electrical power.
3. It supplies the LED with the required output.

For example, if you want to install a 24V LED strip, connect a suitable driver to your 230V mains electricity. It will then provide the strip with the required 24V output.

The exact electronics inside the driver vary by product. Thankfully, you don't need an electronics degree to choose one.

What matters is matching its output to the LED system.

For more installation details, see our guide to LED strip wiring and power supplies.

AC vs DC: What Does the Driver Change?

UK mains electricity is supplied as AC, or alternating current. Many low-voltage LED products operate using DC, or direct current.

A suitable LED driver can convert the mains supply into the DC output the LED product requires.

LED strip lights are a good example. A 12V LED strip light normally needs a suitable 12V DC supply. A 24V LED strip light normally needs a 24V DC supply.

The driver handles that conversion.

Does Every LED Light Have a Separate Driver?

No. Some drivers are built into the light fitting. These are known as integrated drivers.

Other products use a separate unit between the mains supply and the LED. These are external drivers.

External drivers are common with:

• LED strip lighting
• Some LED panels
• Certain downlights
• Low-voltage feature lighting
• Architectural lighting systems

Always check the product specification first. If the driver is already built in, you usually don't need another one.

Constant Voltage vs Constant Current LED Drivers

Not all LED drivers work in the same way. The two main types are constant voltage and constant current.

The LED product decides which one you need.

What Is a Constant Voltage LED Driver?

A constant voltage driver maintains a fixed output voltage. These drivers are widely used with LED strip lighting. Again, the driver voltage must match the strip voltage exactly.

In other words, don't connect a 12V strip to a 24V driver. It's not an upgrade; it's a quick way to create problems.

Wattage still matters as well. Matching the voltage doesn't automatically mean the driver has enough capacity.

What Is a Constant Current LED Driver?

A constant current driver regulates the current rather than maintaining one fixed voltage. Its output may be shown in milliamps.

Common examples include:

• 350mA
• 500mA
• 700mA

Constant current drivers are often used with:

• High-power LEDs
• Certain downlights
• Specialist LED fittings
• Architectural lighting
• Bespoke lighting systems

The required current must match the LED product specification.

Important: Constant voltage and constant current drivers aren't interchangeable. Using the wrong unit can lead to poor performance or damage.

Which Type of LED Driver Do I Need?

Start with the LED product specification.

Never guess the driver type from the light's appearance. Check the manufacturer's specifications instead.

For more details, see our guide on choosing the right LED driver.

How to Choose the Right LED Driver

Before buying a driver, check four things:

• Voltage
• Driver Type
• Wattage
• Installation Environment

Miss one, and your lighting may not behave as planned.

Match the Driver Voltage

For a constant voltage system, the driver's voltage must (as mentioned above) match the LED product.

Again, don't use a 24V driver with a 12V LED product. The driver may have plenty of wattage, but the voltage is still wrong.

If you're planning strip lighting, compare our 12V and 24V LED strip lights.

Calculate the Required Wattage

Next, calculate how much power the LEDs need. For LED strip lighting, use:

Watts per Metre × Total Metres = Total Wattage

For example:

5m × 9.6W/m = 48W

Your driver must provide more than the total load.

Don't choose one that only just scrapes past the calculation. Give it some breathing room.

Simple Lighting generally recommends allowing around 10 to 20% headroom where suitable. For a 48W load, choose a driver with enough extra capacity above 48W. Follow the product specifications for the exact allowance.

For larger projects, see how to calculate LED strip power requirements before buying your driver.

Consider Where the Driver Will Be Installed

The driver also needs to suit its surroundings. Before installation, check:

• Indoor or outdoor location
• Exposure to moisture
• Available space
• Ventilation
• IP rating
• Access for future maintenance

For damp or outdoor areas, choose an IP rating suitable for the installation environment. Don't hide the driver somewhere with no ventilation and then wonder why it gets hot.

The manufacturer's installation guidance should always take priority.

If you're using LED aluminium profiles, the driver still needs its own suitable location.

Do You Need a Dimmable LED Driver?

Want to dim your LED lighting? The whole system needs to be compatible.

A typical dimmable system may include:

• Dimmable LEDs
• A compatible dimmable driver
• A suitable dimmer or controller
• Compatible control technology

The important word there is compatible. A dimmer switch can't magically turn a non-dimmable driver into a dimmable one. Lighting is annoyingly particular like that.

The LED, driver and dimming control must work together. Otherwise, you may experience:

• Flickering
• Limited dimming
• Sudden brightness changes
• Unstable operation
• Lights that refuse to dim

Different drivers also support different dimming methods. Always check the specifications before combining components.

Browse our dimmable LED drivers and controllers for compatible options. For installation guidance, see how to wire a dimmable LED driver.

Common LED Driver Problems and What They Mean

LED problems don't always mean the driver has failed. The cause could involve the driver, wiring, LEDs, dimmer or power supply.

This quick table covers some common symptoms.

If flickering only appears while dimming, check the driver and dimmer compatibility first. For dim strip lighting, also consider voltage drop on longer runs.

Some heat from electrical equipment can be normal. Excessive heat deserves attention. Check the driver's load, ventilation and installation conditions.

Don't open or repair a mains-powered driver unless you're suitably qualified. If mains wiring or electrical testing is required, contact a qualified electrician.

LED Driver vs Transformer vs Power Supply

The terminology around LED power can become confusing quickly. You may see three common terms used.

LED Driver

An LED driver provides controlled electrical power for LEDs. It may regulate voltage or current, depending on the product.

Power Supply

A power supply is a broader term. In low-voltage LED lighting, "power supply" and "LED driver" often refer to similar products.

Transformer

A traditional transformer changes AC voltage from one level to another. It doesn't automatically provide the same regulation required by every LED system. That's why the electrical specifications matter more than the product name.

Check:

• Input voltage
• Output voltage
• Output current
• Maximum wattage
• Constant voltage or constant current
• Dimming compatibility

If those specifications match your lighting, you're on the right track.

Where Are LED Drivers Used?

LED drivers appear in domestic, commercial and architectural lighting. External drivers are common with:

• LED strip lights
• Under-cabinet lighting
• Some LED panels
• LED neon lights
• Feature lighting
• Architectural lighting

Integrated drivers are common with many self-contained LED fittings. These can include:

• Downlights
• Ceiling fittings
• Wall lights
• Commercial luminaires

The exact setup depends on the product. Don't assume every LED light needs another driver because another fitting did. Check the specification before ordering extra hardware.

How to Tell Which LED Driver You Need

Use these five steps before buying:

• Check the voltage. Match the driver to the LED product.
• Confirm the driver type. Identify constant voltage or constant current.
• Calculate the total load. Add up the wattage of all connected LEDs.
• Allow suitable headroom. Avoid running the driver at its maximum rating.
• Check installation requirements. Consider dimming, IP rating, ventilation and available space.

That covers the essentials for most installations. For more detailed selection advice, read How to Choose the Right LED Driver.

Choose the Right LED Driver for Your Lighting Project

An LED driver does more than lower the mains voltage. It supplies the LEDs with controlled electrical power at the required voltage or current.

The right driver must match the LED type, voltage and wattage. It also needs to suit the installation environment. For dimmable systems, every part of the control setup must be compatible, too.

Get those basics right before installation. It's much easier than troubleshooting flickering lights afterwards.
