Recti Super Slim 5w LED Cabinet-Light

Recti Super Slim 5w LED Cabinet-Light

SKU: SY7923

12V DC

Voltage

350lms

Lumens

30,000 Hours

Lifespan

Wattage

Was £19.95

Special Price: £12.95

Save £7.00

What are Lumens?

Qty:

Free delivery if order is over £75

Up to 7 year guarantee on lightbulbs

In Situ LED Cabinet Light - 5w Power Recti Style

Product Description
Specifications
FAQ
Reviews
Delivery & Returns
Related Products

Product Description

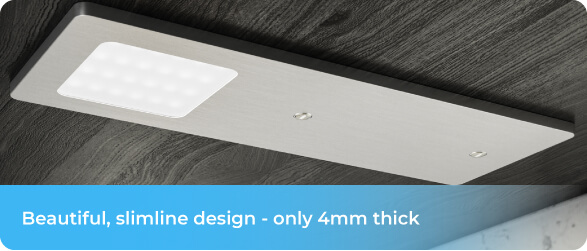

By far our best selling cabinet light, our recti, 5w LED cabinet light is brilliant in any kitchen, its only 4mm deep and our top selling LED Cabinet light.

Installation is very simple, as standard this comes with a 1.5m long straight forward plug and play connector. This plugs directly into the led driver (sold seperately).

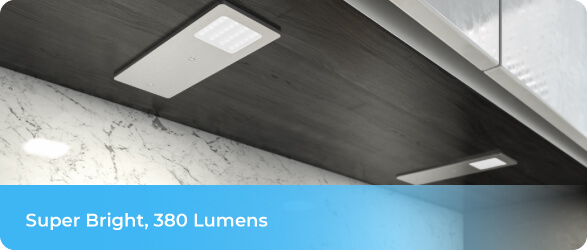

Being rated at just 5w power, it boasts a huge 350 lumens in a natural white led colour.

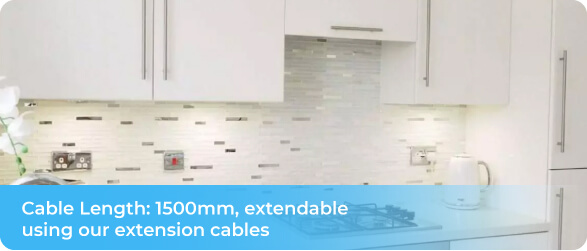

To assist with installation, each light comes with a 1.5m long power cable and they must be wired in parallel to the LED Driver (See further down for info).

The cable comes out the rear of the light fitting, from around the middle.

It sits within a groove until you get to the back of the cabinet light where the cable is then revealed. Therefore the cable can either come directly out of the rear and go straight through a small hole in the cabinet, hiding the cable completely or if you prefer you can take the cable out of the back and feed through the cabinet.

We offer a whole range of ways to control and operate your LED cabinet lights.

The Basic Set Up - Switches the lights on and off, using a light switch or plug socket.

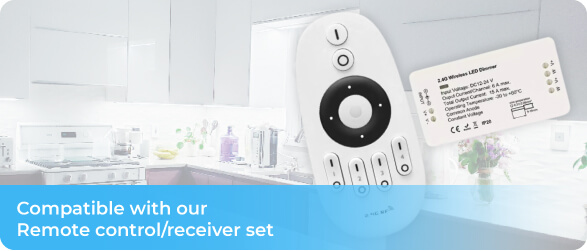

Remote Dimming - Using our unique remote control, you can dim the brightness from 1-100% and turn the cabinet lights on & off. You can view this product by clicking here.
Sensors - We offer a large range of door sensors and Infra-Red sensors. Using the door sensors you open the door and the lights switch on and close the door and they switch off. With hand movement sensors you swipe your hand to turn on and swipe to turn off. You can find our selection by clicking here.
Mains Dimming – When you want to control your lighting on a traditional wall dimmer. You would need to install a dimmable LED Driver & a compatible wall dimmer. Please find our Dimmable led driver by clicking here and our range of wall dimmers by clicking here (Please note: The dimmable led driver has a minimum load of 3 watts to operate correctly).

Technical Specification

190mm long x 70mm wide
350 Lumens
Only 4mm Deep
Power supply 12Vdc
Cable length 1.5m
Number of hours 30,000*
Colour appearance Natural White
Colour temperature 4000 – 4500
Luminous efficacy 70 lm/W
Colour rendering index Ra 80
Wattage 5W
IP Rating IP20

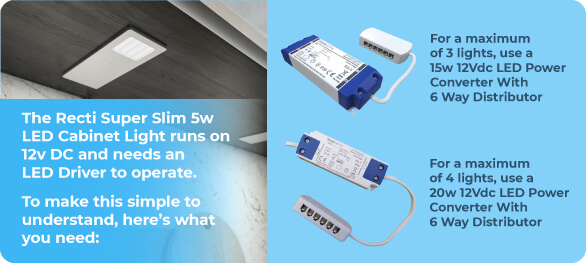

LED Driver selection

When using these LED cabinet lights, you should use our 15w LED driver, product code SLG15WPOWER. This will power a maximum of 3 lights.

Specifications

Colour Natural White
SKU SY7923
Length 190mm The physical length of the product
Depth 4mm
Width 70mm The width of the product. Normally measured in mm unless otherwise stated.
Beam Angle 120 Refers to the degree of width in which the light illuminates from the source.
Voltage 12V DC The operating voltage of the product. 220-240v AC is UK mains voltage (What comes out of your plug sockets). So if the voltage shown is below 220v then you will more than likely need a transformer for the light to operate.
Average Hours 30,000 Hours The average number of hours you would expect the light to run. N.B This is the manufacturers guild line, not a warranty period.
Delivery Time Available Next Day Delivery if Ordered Before 3pm
Finish Aluminium The overall visible finish of the product. Such as stainless steel, chrome, white etc.
IP Rating IP20 Ingress protection rating. Classifies the degree of protection against water and dust.
Lumens 350lms A measure to the brightness of a LED Light. Example being 320 lumens would be the equivalent in brightness to a old fashioned 50w Halogen spot light.
Wattage 5w The total electrical power used of the light. A higher wattage no longer guarantee’s that the light is brighter. EG: there are LED products which are 5w which is equal in brightness to a 50w incandescent bulb.
Bulb included Yes
Colour Temperature 4000K Colour temperature in K

Here are some answers to frequently asked questions asked by other customers. Alternatively, you can click Ask a Question and we will get back to you asap.

5 Square slim rectangle LED have been fitted in my new kitchen, wired to a single mains switch. Can I dim them with a dimmer switch?: Hi,

Thanks for the question.

If it is these particular cabinet lights then yes, but your LED Driver (Transformer) would need to be changed to a dimmable one and you would need to make sure that you are using a LED Dimmer, like a Varilight V-Pro brand.

If it is not this actual cabinet light and just one which looks like it then sadly i cannot tell you if it can be dimmed or not.

If you need any further suggestions it might be best to call our sales/technical team who can talk you through it.

Thanks

Chris

Is the cable connected inside the fitting and hidden, or is it plugged into the fitting at the back and visible?: Hi Steve,

The cable comes out from on top of the fitting so therefore you can drill a hole and hide it. It wouldn't be seen on installation.

Thanks
Chris

These lights look fabulous, but I am concerned by your answer that I would have to drill a hole in the base of each cabinet to run the cable through in order to hide the connection. The a) ruins the cabinet and b) is aesthetically displeasing inside the cabinet, am I right?: Hi Bill,

Thanks for your message. These are a Fab light, super bright and extremely well manufactured.

Just to clear up the answer which you refer to. You don't need do this.

The cable comes from the centre of the light, so you would have two options. 1) Drill a hole and run the cable straight up. This is great for customers whom don't want a wire on show. 2) You can run the cable out of the back or side. Its a flat wire, so when you install the light the wire can sit behind the light.

Hopefully this answer helps

Thanks

Chris

Hi. Can these be fixed over cabinet lighting the front of the unit as well as under and is the power cable integral?: Hi Roy,

Yes, its suitable for both.

Thanks

Chris

Please, can I install a switch lower down as I intend to connect to a power socket (which is higher up)?: Hi Paul,

You can do, but i would assume this would be a fuse spare. So a remote switch, switching the socket above on/off.

Thanks
Chris

In your reply about dimming you said one needs a dimmable LED driver but also a LED dimmer. Would you please explain further, are these two separate things and how are they used in relation to each other?: Hi Stelios,

Yes sure, so the LED Driver is basically a transformer which powers the light, because it runs on 12v DC.

The LED Dimmer is the wall dimmer, so basically what you dim the brightness with in the room.

You just need to check the dimmer on the wall works with LED lighting, because most dont. We sell Varilight dimmers, they are all fine for LED. Search the site for Varilight and you will find them.

Thanks

Chris

Hi reading the FAQ you cleared up the question re. cable entry in the center of the back but could lose the cable behind the fitting, as the fitting is only 4mm thick not much room for a void! I am looking at installing the transformer on top of the 900mm kitchen cabinets pulling the supplied cables on the fitting up, so can i fit the end of the fitting against the wall with the cable coming out the end to rise up with no drilling is that possible. Regards Paul.: Hi Paul,

Yes, i believe that this will be possible.

The cable come out of the back of the unit through a grooved channel from the center so you can extend this cable to run up behind their cabinet without drilling into the cupboard.

Thanks

Chris

Hi there I have no idea about these things do you drill a hole in your kitchen cabinet and the wire would be visible inside the cabinet ? I need 4 lights all spread out how do I go about this ? Please answer as simple as possible as I have no clue ha haha sorry and thank you: Hi Laura,

The wires come from the back of the unit, but there is a indent through the back side of the fitting.

Therefore, the wires can either come from the back or you can drill a hole and push it through the cabinet.

Most kitchen cabinets, normally have a void at the back (which you cannot see), this allows wires to go from under cabinet to the top of the cabinet without any visible wiring.

Then can then be connected through a transformer, straight into the mains. If in doubt though, we would highly recommend that you speak to a qualified person.

Thanks

Chris

What transformer/driver will I need and how much are they: You will need this LED Driver,

https://www.simplelighting.co.uk/15w-12vdc-led-power-converter/

Please follow the link for the latest price.

Thanks

Can these be run in series connected to each other or only in parallel with a suitable driver? What length of cable are they supplied with? Can cables be run out of either side of the unit? ~Thanks, Peter: Hi peter

Cable is 1.5m from each light, wired in parallel to the LED Driver.

Cable comes from out of the back of the unit (Around the middle). There is a groove within the rear of the light, this hides the cable from sight. And the cable can then go out of the back of the light through the groove or you can drill a small hole and feed it through the cabinet.

Therefore the cable can be completely hidden, if desired.
