Smooth Rotary Dimming Control
This dimming remote control makes it easy to set single-colour LED lighting at the right level for the task, time of day or atmosphere. A simple rotary knob helps you adjust your lights’ brightness levels.
Turn the dial to increase or reduce the light output. You can also push the knob to turn the lights on or off. The lack of complicated menus or multiple navigation buttons makes this an ideal controller for spaces where lighting needs to be adjusted regularly.
With 256 dimming levels available, the transitions feel gradual and refined rather than jumping noticeably between different brightness levels. The dimming range also extends from 0% to 100%. This means you can move from very low illumination to full brightness as long as you have compatible dimmable LED lights connected.
Wireless RF 2.4GHz Operation
Built-in RF 2.4GHz communication allows this dimmer controller to operate compatible lighting equipment wirelessly. This reduces the need for wired installations (from the wall panel to the receiver), simplifying the overall control layout. This is especially useful in retrofit projects or interiors where running new signal wires would be inconvenient.
This dimmer can also be connected to a compatible RF 2.4G remote control. Commands are transmitted wirelessly whenever the dial is adjusted or pressed.
In open, unobstructed areas, the wireless control range can reach approximately 30 metres, so when placed at the centre of the home or commercial space, it can control most lights, provided they have compatible receivers. Actual range may vary depending on walls, building materials and other environmental factors.
Designed for Single Colour LED Lighting
Specifically designed for single-colour LED lighting systems, this rotary panel dimming remote control focuses on brightness levels, which means there are no unnecessary colour or colour temperature settings to worry about. This is ideal for lighting installations that only have white or single-colour setups.
If used for home, you can use it to manage ambient lighting in living areas, bedrooms, and dining spaces. Offices can also use it to adjust general or task lighting. Even retail environments can benefit from this simple control by tailoring illumination to merchandise displays and varying trading conditions.
Hospitality environments such as hotels and restaurants often require brightness levels to change throughout the day, making this control panel an ideal component of their lighting systems.
Because the interface is dedicated solely to brightness adjustment, staff, guests, and occupants can operate the lighting without training or complicated instructions.

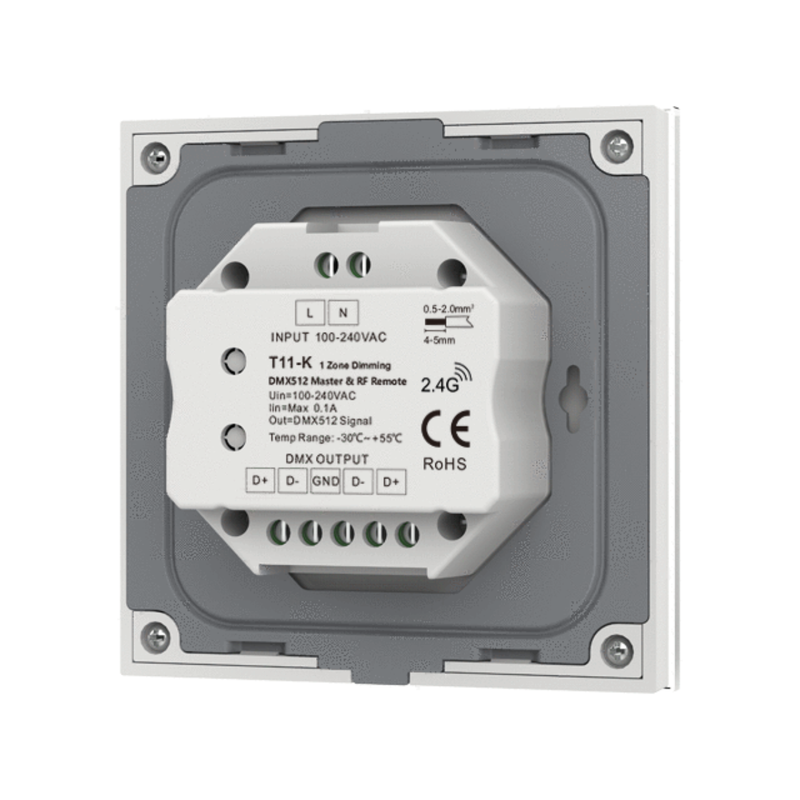

Direct 100-240V AC Power Input
This wall panel is mains-powered, meaning it operates directly from a 100-240V AC mains supply. This means that it doesn’t require a separate low-voltage power source or driver. This results in a straightforward procurement, layout planning, and installation since there are fewer components to worry about.
The broad voltage compatibility also makes the wall panel suitable for a variety of installation requirements, from domestic projects to larger commercial environments. The panel also has a maximum input current of just 0.1A, which makes it an efficient control device for any lighting setup.
This direct power arrangement keeps the control setup practical and compatible with common electrical installations, providing a clean solution for both new and retrofit lighting projects.

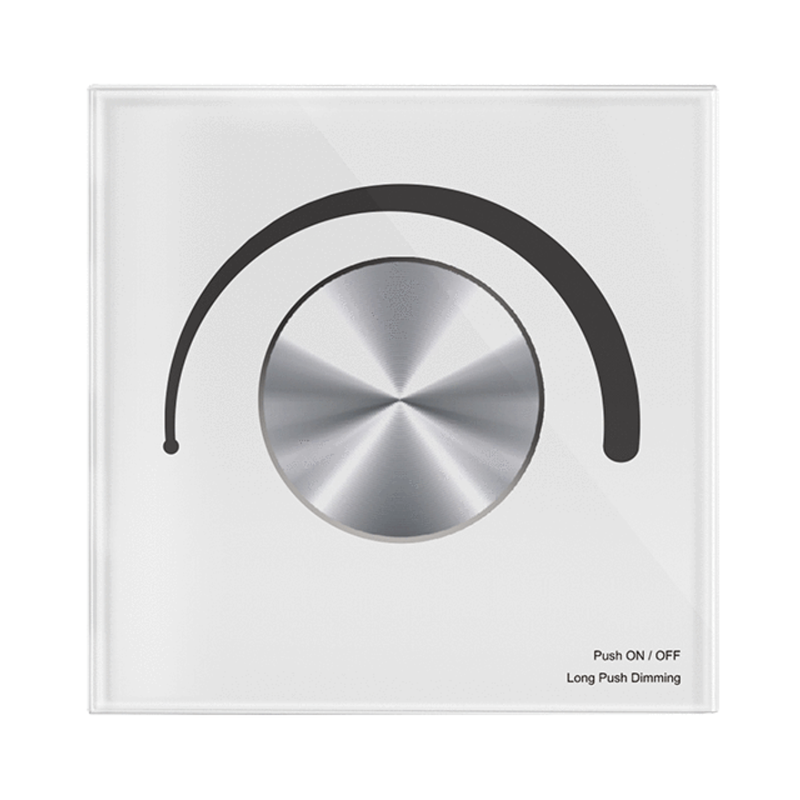

Stylish Wall-Mounted EU Size Design
Conventional lighting controls are button-heavy, making this wall panel a fresh alternative thanks to its square faceplate and prominent central dial. The simple, minimalist design makes the panel’s main function immediately clear without creating a disruptive presence within the space. The users can adjust the lighting right away when needed.
The panel also comes in a standard EU-size format and is designed to blend well with compatible wall installations without adding unnecessary visual clutter. Measuring just 86mm x 86mm with a depth of 36.5mm, the panel has a balanced, low-profile build that works well in modern residential and commercial spaces.
A clean glass-panel finish completes the design, allowing the unit to sit comfortably alongside modern switches, sockets, and other interior fittings for a professional finished appearance.
Compatible with RF Dimming Systems with a DMX512 Master
Rather than operating as an isolated device, you can pair this wall panel with compatible RF dimming controllers and accessories. This allows the panel to integrate with a wider wireless lighting control system, providing flexible installation and operation.
With the Skydance setup, the panel can serve as the fixed wall-mounted control point while paired receivers manage the connected LED lighting. It can also be used as a one-zone RF remote, making it suitable for installations that don’t need multi-zone lighting.
What’s more, the wall panel is backed by a 5-year warranty. This offers reassurance and peace of mind during and after installation that the wall panel and its rotary dimming control will work as intended.
