Part of the Lighteez system

Lighteez PIR Sensor Input Cable for Recessed Profile - Plug & Play

SKU: PRO-LED-09-PIR

£7.49£10.65INC VAT

Prices shown include VAT —

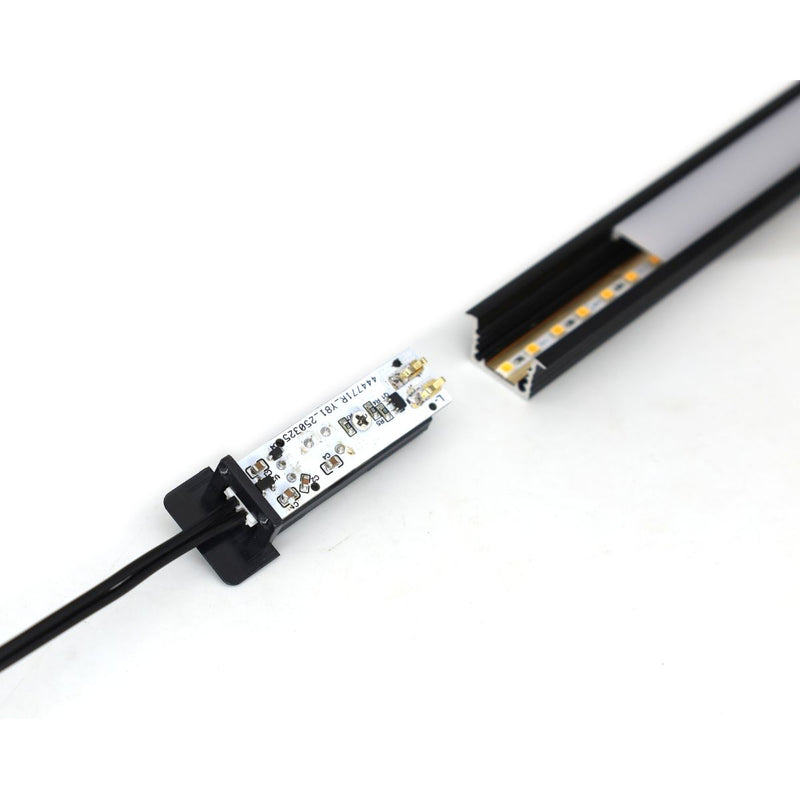

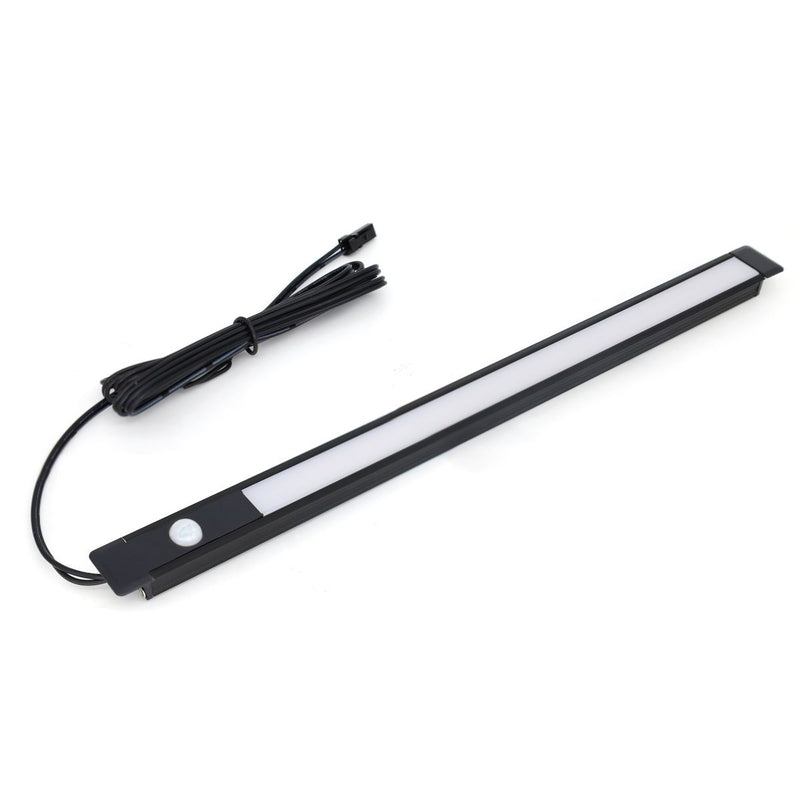

In Stock Simple Lighting - Lighteez 2m Recessed LED Profile - Complete kit with the recessed profile, frosted diffuser, PIR sensor, cable and end caps.Simple Lighting - Lighteez 2m Input Cable With Sensor (PIR) - A close up of the electronics at the back of the PIR sensor, with the end of the profile in the background.Simple Lighting - Lighteez 2m Recessed LED Profile - The recessed profile with the sensor and cable attached.
Complete your Lighteez connection with the correct cable or connector. Match the product code to your light or illuminated profile before ordering.
Included

The cable or connector shown.

You’ll also need

The matching light or profile and a suitable driver.

Build a kit with this product →

Get notified when this item is back in stock.

Product Description

  • Control at the profile: Optional sensor input cable for the Lighteez recessed profile.
  • Choose the action: Responds to movement in front of the sensor.
  • Match the profile: For PRO-LED-09-2M; replaces its standard input cable.
  • Local control: Controls the attached profile while its driver is powered.
  • Plan before fitting: Check the cable route and sensor position before fixing the joinery.
See More Technical Details
SKUPRO-LED-09-PIR
Input Voltage24V DC
BrandLighteez
Cable Length1.5m
Sensor TypePIR

Add control at your Lighteez recessed profile with this sensor input cable. It replaces the standard input cable and responds to movement in front of the sensor, making it useful for a cupboard or furniture compartment where you want control close to the light.

For the recessed profile only

This accessory is made for the Lighteez recessed profile, PRO-LED-09-2M. It is not a universal sensor cable for the glass, corner or surface profile. Check the matching profile code before ordering.

Profile control and driver control do different jobs

The sensor on this cable controls its connected profile while the driver is supplying power. A separate driver-port sensor controls the whole driver group. If a driver control turns that group off, this local sensor cannot override it. Plan which control you want to operate the furniture.

Plan the mounting position

Route the cable before closing up the joinery and position the sensor where the intended hand gesture or movement can reach it. Test the location before final fixing. The recessed profile includes a plain input cable; this sensor version is an optional replacement, sold separately.

Specifications and what is included

Product specifications
For profile PRO-LED-09-2M recessed profile
Voltage 24V DC
Lead length 1.5m
Control PIR motion
In the pack One sensor input cable; profile and driver sold separately
Part of the Lighteez system

Different lights. One simple connection.

1. Choose your lights

Mix cabinet lights, LED strips and illuminated profiles. Connect each separately powered light or length to a light output.

2. Plug into your driver

Match the total wattage and number of outputs. Each light output supports up to 3A (72W at 24V).

3. Add optional control

Plug a sensor into the separate sensor port to control the group. The touch dimmer uses PWM on the 24V side.

Strips include a fitted 2m Dupont lead. Every illuminated profile includes brackets and one 2m cable. Drivers and optional sensors are sold separately. Around 80% driver loading is a recommendation; up to the rated total capacity is permitted within connection limits.
