Lighteez 2m Recessed LED Profile - 24V Plug & Play, 10W/m, 3000K

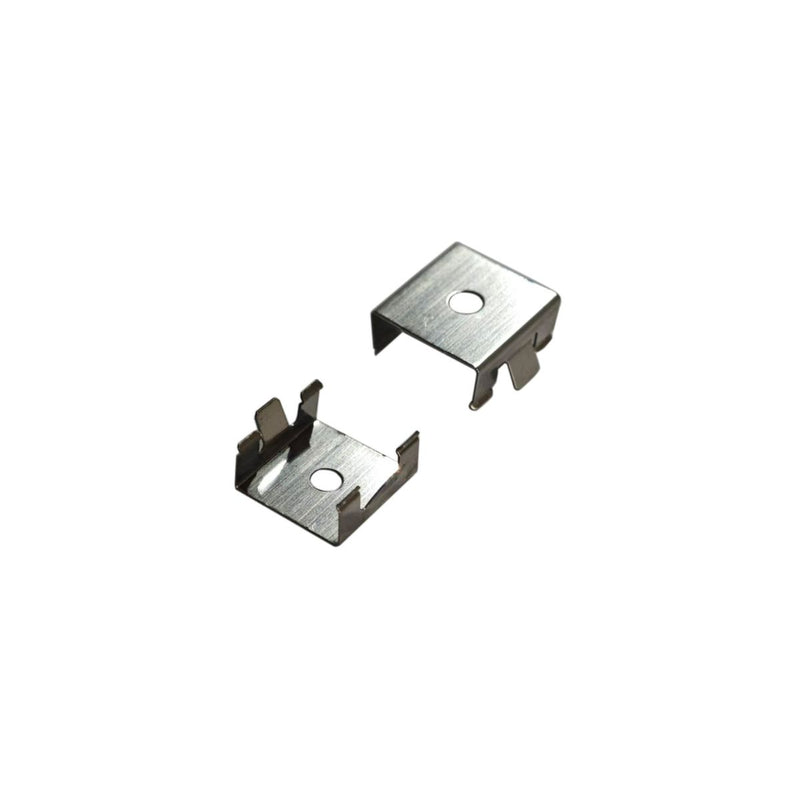

Add a warm line of light to your furniture with this 2m Lighteez recessed LED profile. The LEDs are already fitted inside the aluminium profile, and the pack includes mounting brackets and a matching 2m input cable. Cut it to suit the joinery, push the connections together and connect it to a suitable Lighteez driver, sold separately.

Build the light into the joinery

The recessed shape sits in a prepared channel for a flush finish beneath shelves or inside cabinets. Plan the recess and cable route while making the furniture, and check the drawing before machining.

Cut to length without soldering

Use a hacksaw or suitable machine saw to cut the profile to the length your furniture needs. Its electrical connections are push-fit: you do not need to solder a new connection onto the cut section. Follow the fitting instructions and cut with the power disconnected.

Both pieces can still be used after cutting. If you cut a 2m profile into two 1m sections, the supplied cable powers one section; add another matching input cable to power the second separately. The profile already includes its brackets, so the extra cable is the additional part needed for that connection.

Warm white light with the LEDs already installed

The profile produces 3000K warm white light. Its rated consumption is 10W per metre, or 20W for the complete 2m length, with a listed output of 450 lumens per metre. The anthracite finish provides a dark edge around the illuminated section.

Size the driver for your complete project

One uncut 2m profile is a 20W load, so the 15W driver is too small. A 36W Lighteez driver can power that profile. For several fittings, add their wattages and count the separately powered connections. Use the Lighteez kit builder to combine profiles with cabinet lights and prepared LED strip, including multiple drivers when needed.

You may use up to the driver’s rated total capacity. Keeping around 20% spare is a good-practice recommendation, not a requirement. Respect the 3A/72W limit per 24V light output as well as the driver total.

Choose control at the profile or the driver

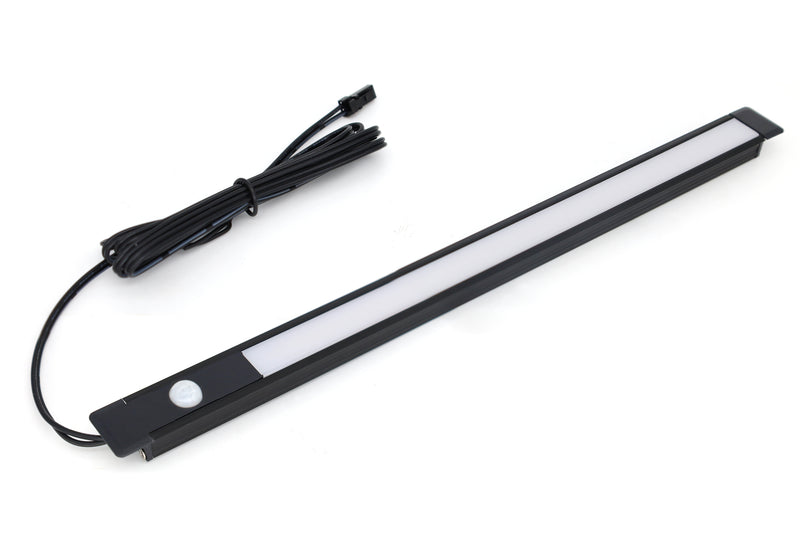

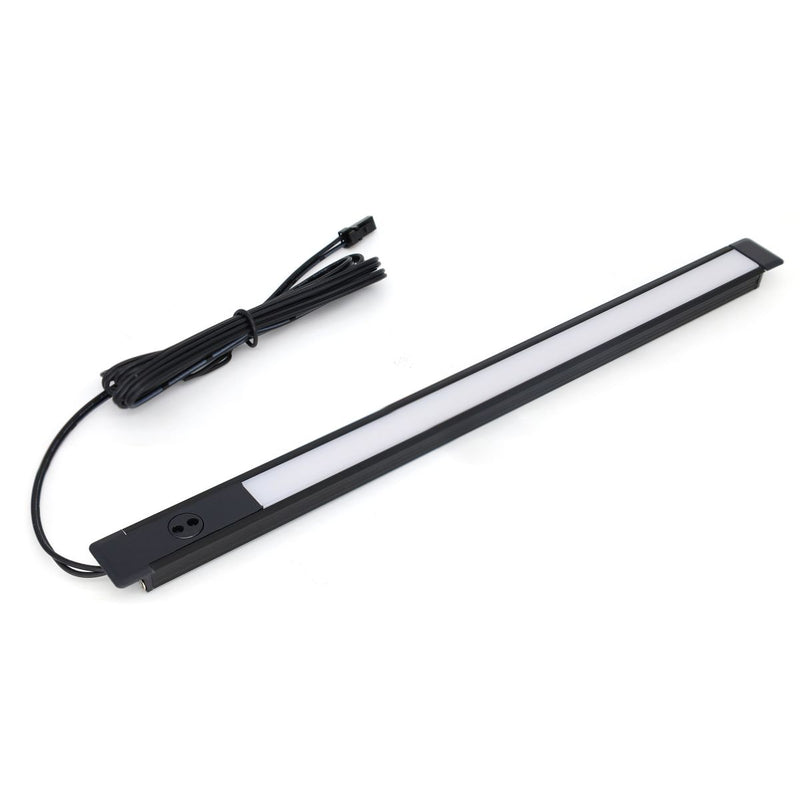

The standard input cable is included. Optional recessed-profile sensor cables replace it when you want control at the profile. A driver-port sensor instead controls all lights on that driver together.

For furniture makers and DIY fit-outs

The prepared fitting gives joiners and cabinet makers a repeatable way to add lighting to bespoke work. DIY customers can use the same connections for a shelf or cupboard project. Exhibition builders can incorporate it into display furniture, with the stand supply and cable routes planned separately.

Specifications and what is included
