Part of the Lighteez system

Lighteez 2m Input Cable for Corner Profile - Plug & Play

SKU: PRO-LED-04-INPUT

£1.95£2.79INC VAT

Prices shown include VAT —

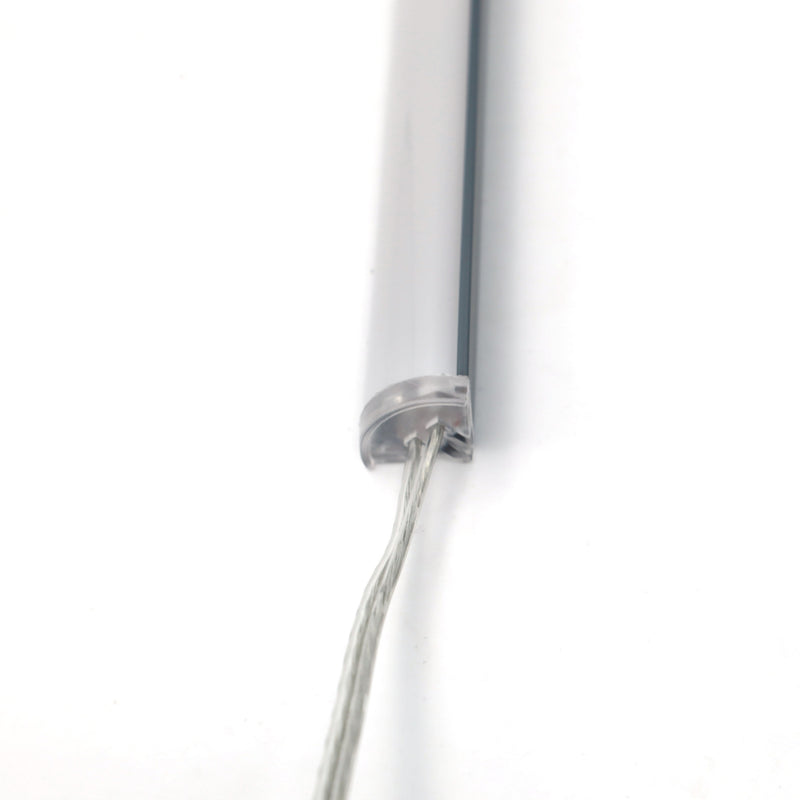

In Stock Simple Lighting - Lighteez 2m Input Cable - Rolled up input cable for PRO-LED-04-2M Corner ProfileSimple Lighting - Lighteez 2m Corner LED Profile - The profile edge with visible LED strip inside, and the connector cable beside it.Simple Lighting - Lighteez 2m Corner LED Profile - The profile with the attached cable.
Complete your Lighteez connection with the correct cable or connector. Match the product code to your light or illuminated profile before ordering.
Included

The cable or connector shown.

You’ll also need

The matching light or profile and a suitable driver.

Build a kit with this product →

Get notified when this item is back in stock.

Product Description

  • Matching profile connection: Input cable for the Lighteez corner profile, PRO-LED-04-2M.
  • Use a cut section: Add a power connection for the second usable piece of a cut profile.
  • 2m reach: Route the cable from the profile to an accessible Lighteez driver.
  • Push-fit connections: No wire stripping or soldering is required at the connections.
  • An optional extra: Each new profile already includes one matching cable and brackets.
See More Technical Details
SKUPRO-LED-04-INPUT
Input Voltage24V DC
BrandLighteez
Cable Length2m

Power an extra section of your Lighteez corner profile with this matching 2m input cable. It connects the profile to a compatible Lighteez driver through push-fit connections, with no wire stripping or soldering.

Use the second piece after cutting

The 2m illuminated profile already includes one matching cable and its mounting brackets. If you cut it into two usable sections and want to power the second separately, this is the additional cable to order.

Match the connector to the profile

This cable is for the corner profile, PRO-LED-04-2M. The connector at the profile end is specific to that fitting; choose by profile type rather than assuming all input cables interchange.

Plan the route to the driver

Allow one light output for the separately powered profile section. Measure the cable route around the furniture and include the section’s wattage in the driver load. For more reach on an existing lead, use the 2m Dupont extension instead of buying another input cable.

For cabinet making and DIY alterations

A spare matching input cable lets you use cut sections in separate cupboards, shelves or display-furniture compartments. Plan each section’s power connection before fitting the furniture.

Specifications and what is included

Product specifications
Length 2m
For profile PRO-LED-04-2M
Supply 24V DC
Connections Matching profile input to Lighteez driver
In the pack One input cable; profile and driver sold separately
Part of the Lighteez system

Different lights. One simple connection.

1. Choose your lights

Mix cabinet lights, LED strips and illuminated profiles. Connect each separately powered light or length to a light output.

2. Plug into your driver

Match the total wattage and number of outputs. Each light output supports up to 3A (72W at 24V).

3. Add optional control

Plug a sensor into the separate sensor port to control the group. The touch dimmer uses PWM on the 24V side.

Strips include a fitted 2m Dupont lead. Every illuminated profile includes brackets and one 2m cable. Drivers and optional sensors are sold separately. Around 80% driver loading is a recommendation; up to the rated total capacity is permitted within connection limits.
