Lighteez 100W 24V Plug & Play LED Driver - 1.2m Cable

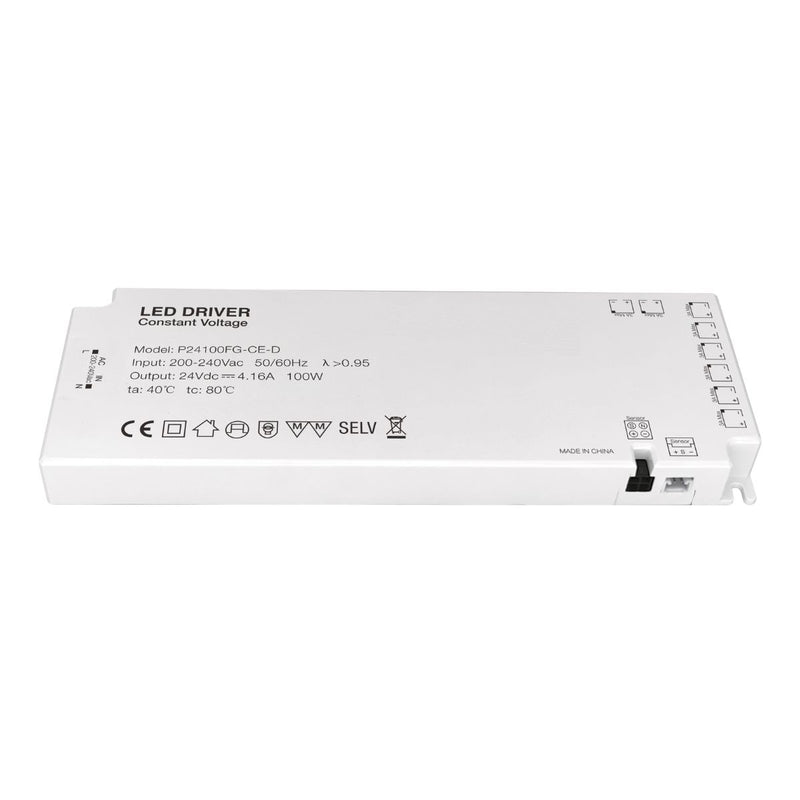

Power a group of furniture lights from this Lighteez 100W driver. It provides 24V DC with 8 plug-in light outputs and a separate sensor port, so you can combine cabinet fittings, prepared LED strips and illuminated profiles in one compatible system.

One driver for different types of light

The driver supplies Lighteez cabinet lights, cut-to-size strips and illuminated profiles. Choose the capacity for the whole group and allow one output for each separately powered light or strip piece. For example, five complete 2m profiles draw 100W and use five outputs. That uses the full rated capacity; four profiles total 80W if you prefer the optional 20% spare margin.

Rated capacity and optional spare capacity

100W is the rated total capacity. Loading to around 80%, or 80W, is a good-practice recommendation that leaves spare capacity. It is optional: you can use up to 100W across the driver’s outputs.

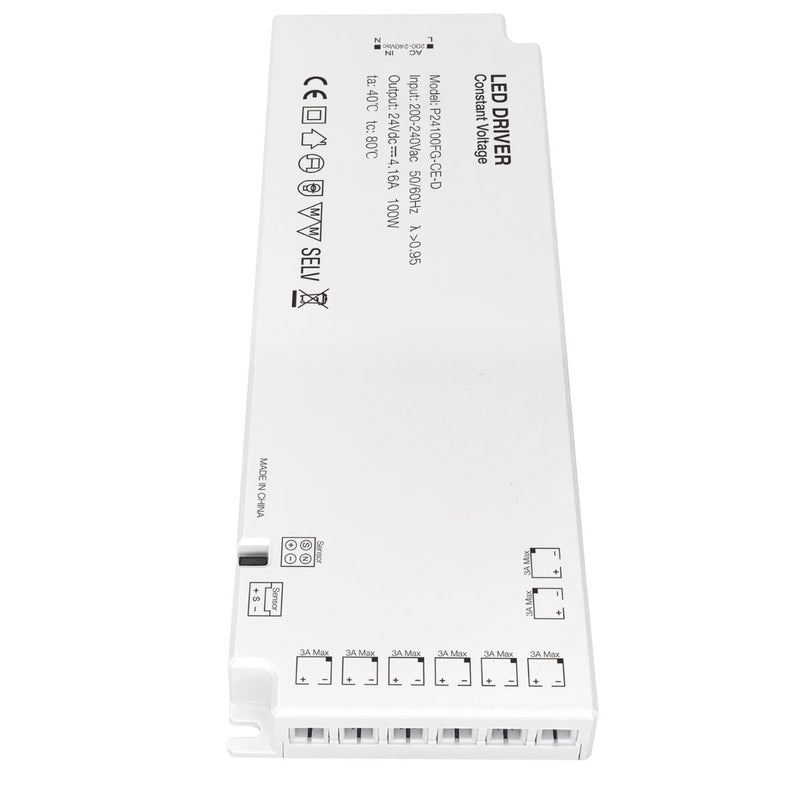

Each light output is limited to 3A, equivalent to 72W at 24V. On smaller drivers the driver’s lower total rating still applies. You cannot combine several driver outputs to power one oversized strip piece.

Plan a DIY furniture-lighting installation

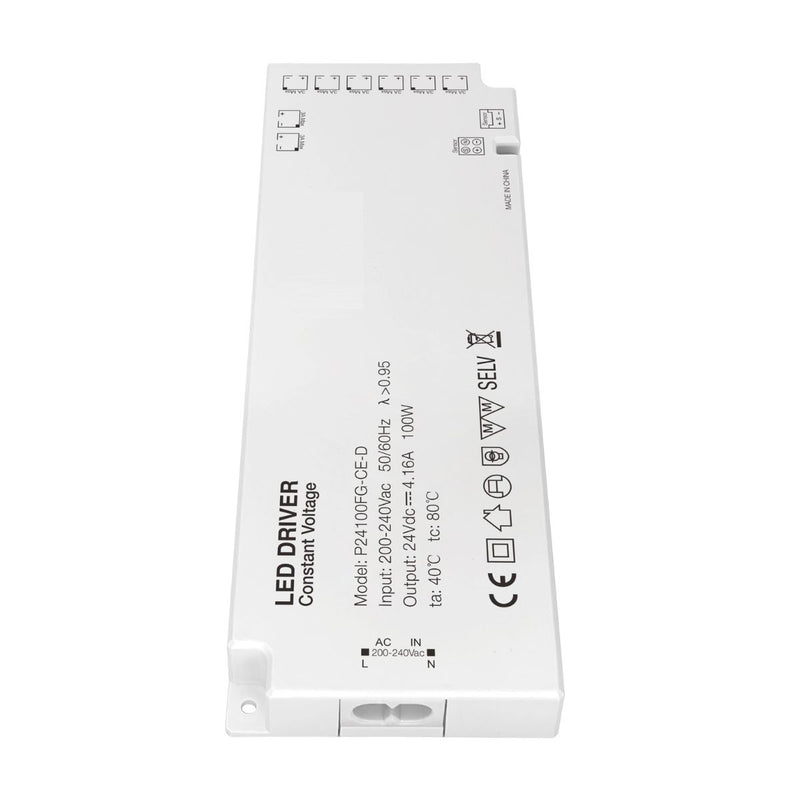

The driver includes a 1.2m mains lead for the plug-in setup. Place it in a suitable dry, accessible position and measure the routes to your lights before fitting cupboards or shelves. The low-voltage light connectors plug into the driver without stripping wires or soldering.

Control the group or use separate drivers

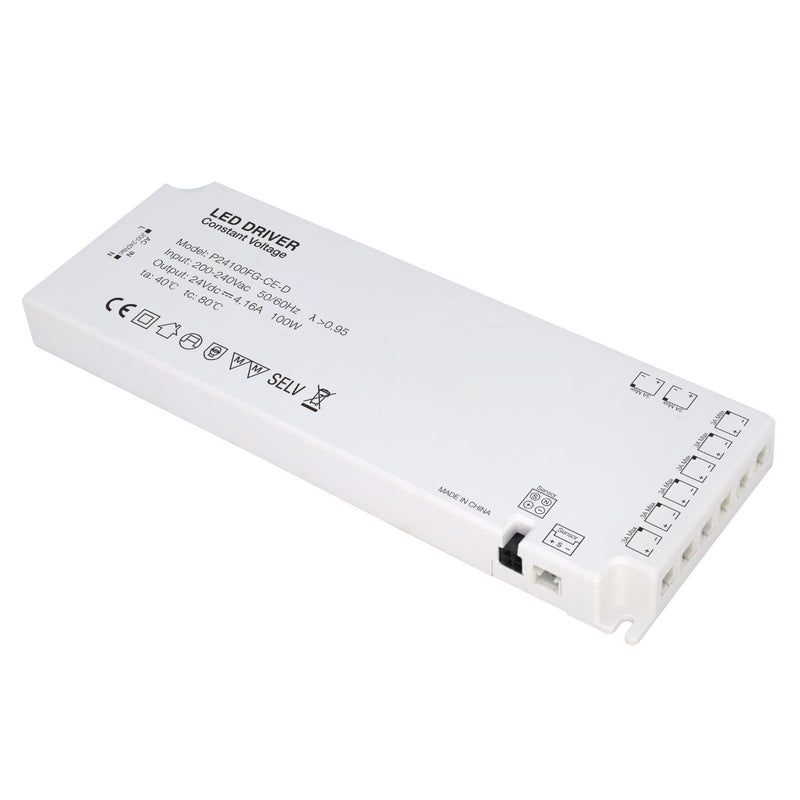

Add a Lighteez door, hand-wave, touch or motion control to the separate sensor port. It operates the lights on this driver together and leaves the light outputs available. If areas need separate control, or the project exceeds this driver’s capacity or output count, plan multiple drivers in the Lighteez kit builder.

The Lighteez touch dimmer controls the low-voltage lighting using PWM. This does not make the driver suitable for a mains wall dimmer.

For joinery, cabinetry and display furniture

The same connection system can serve a DIY wardrobe, a cabinet maker’s fitted units or an exhibition display counter. For each job, check the load, socket position and cable reach rather than choosing a driver only by the number of lights.

Specifications and what is included
