Reliable LED Panel for Commercial Lighting Applications

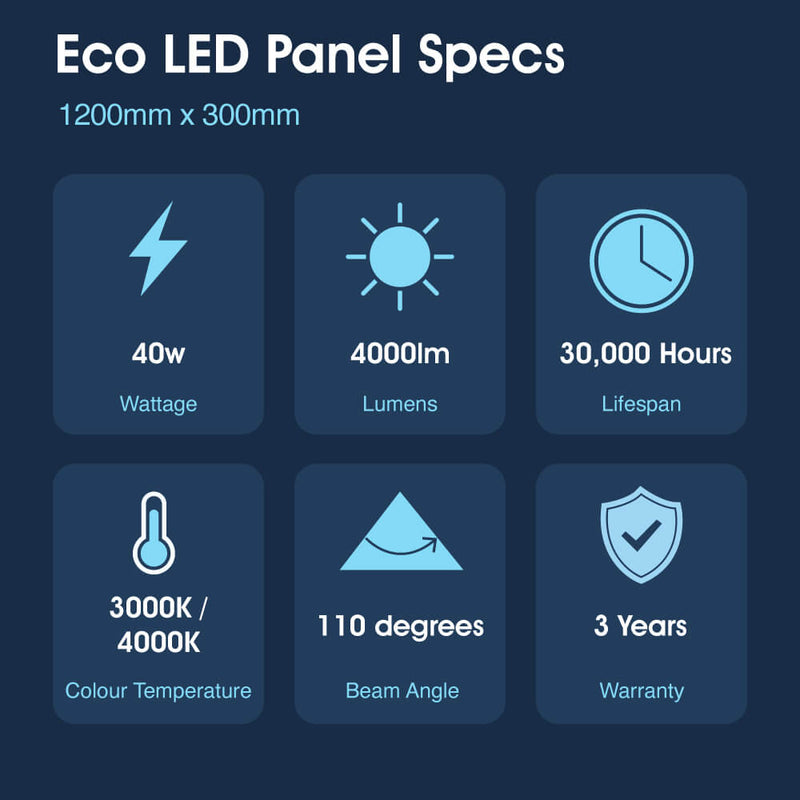

This 1200x300 LED panel bundle delivers stable, high-output illumination across a wide range of commercial environments. The panel is made for consistent daily operation and provides a dependable lighting solution for offices, educational facilities, and retail spaces. With an output of 4000 lumens, the panel ensures sufficient brightness to support productivity, visibility, and comfort throughout the working day.
Built for longevity, the panel offers an average lifespan of 30,000 hours, reducing replacement frequency and associated maintenance costs in large-scale installations. This makes it particularly suitable for projects requiring long-term performance with minimal disruption.
Backed by a 3-year warranty, the bundle provides added assurance for commercial installations. An optional emergency conversion kit is available, allowing the panel to provide backup illumination in the event of a power failure.
DALI Dimmable Driver for Smart Lighting Control

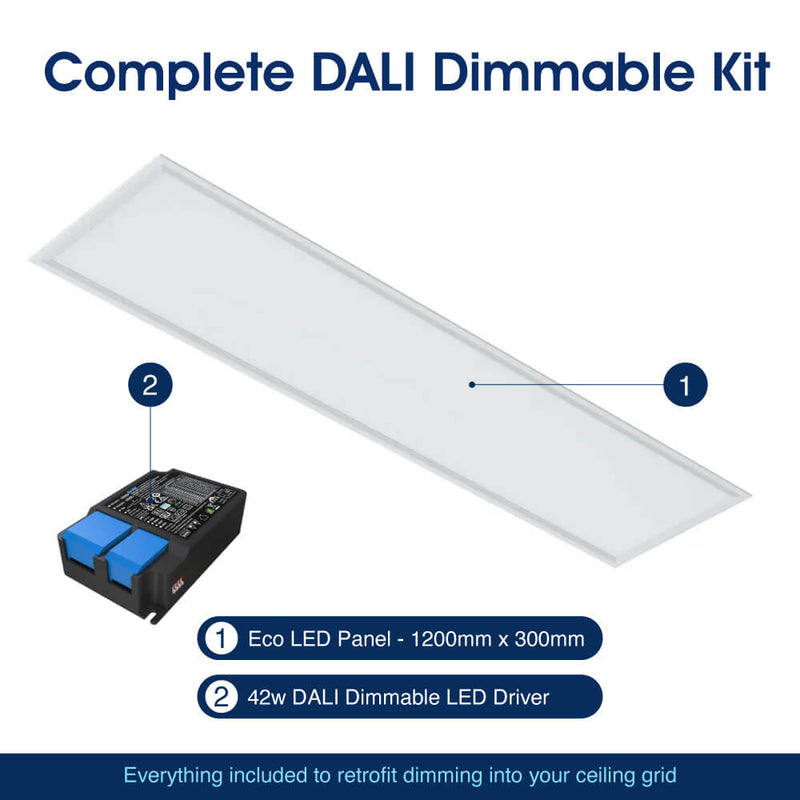

Supplied with a versatile dimmable driver, this LED panel bundle supports three dimming methods: DALI-compatible (if already using the system), push dimming, and 0-10V dimming. This allows seamless integration into a wide range of commercial lighting systems, from fully automated building management setups to simpler manual control installations.
The driver operates within an input voltage range of 220-240V and delivers a controlled output voltage of 6-42V, ensuring stable, efficient power regulation.
Rated at IP20, it is suitable for indoor installations in controlled environments. The driver is also equipped with integrated safety features, including short-circuit, over-current, and over-temperature protection. These safeguards help prevent system faults, protect connected components, and ensure long-term reliability in demanding commercial environments.
Available in Cool White or Natural White Options
This LED panel is available in two carefully selected colour temperatures, offering proper alignment of lighting output with the intended application. The 6000K Cool White option delivers a crisp, high-clarity light that enhances alertness and visibility, making it particularly effective in task-oriented environments such as offices, classrooms, and healthcare settings.
Alternatively, the 4000K Natural White option provides a more balanced and neutral illumination, suitable for areas where visual comfort and consistency are priorities. This makes it well-suited to retail environments, meeting rooms, and general spaces.
These two options allow you to match the lighting to your space without extra adjustments or accessories, ensuring it meets both functional needs and user comfort across different commercial environments.
Back-Lit Technology for Uniform Light Output
The panel incorporates backlit LED technology to deliver a clean, evenly distributed light output across its entire surface. This design eliminates the common issues associated with edge-lit panels, such as visible hotspots, uneven brightness, and lower efficiency. Instead, the LED panel provides consistent illumination that enhances visual comfort and reduces eye strain, a critical factor in professional environments.
With a 110-degree beam angle, the panel achieves broad light distribution, ensuring effective coverage across workspaces without creating harsh contrasts or shadowed areas. The back-lit configuration also improves optical efficiency, allowing more of the generated light to be directed into the usable space. The result is a refined lighting performance that supports both aesthetic and functional requirements in modern commercial interiors.
Energy-Efficient Lighting with Dimming Capability
This LED panel is designed to support energy-saving commercial lighting efforts by combining efficient LED performance with external dimming control. At 40W, the panel delivers effective illumination while consuming less power than traditional lighting solutions, such as fluorescent tubes.
When used with the supplied DALI driver, the panel enables precise brightness adjustment to suit occupancy patterns, daylight availability, and operational requirements. This enables intelligent energy management across commercial spaces, helping minimise unnecessary power usage during low-demand periods.
With an input voltage of 220-240V, it integrates easily into standard electrical infrastructures, making it a practical solution for both new installations and retrofit projects focused on improving efficiency and reducing long-term running costs.
Slimline Design for Modern Ceiling Installations
This LED panel features a slimline body that fits seamlessly into suspended ceiling systems. With dimensions of 1200mm in height, 300mm in width, and a depth of just 34mm, it offers a low-profile solution that maintains a clean and unobtrusive ceiling appearance.
The panel is rated IP20, ensuring suitability for indoor applications where protection against solid objects is required but moisture exposure is controlled. The accompanying driver is also compact, measuring only 123.5mm in length, 81.5mm in width, and 23mm in height, allowing for straightforward installation within ceiling voids or confined spaces.
Optional accessories are available to support different installation requirements, including a suspension kit for suspended installations and a surface-mounting frame for mounting the panel on solid ceilings.
