DMX512 Master and RF 2.4G Remote in One Panel
This single panel offers two helpful ways to control your lighting system. As a DMX512 master, it operates as a typical DMX master, sending control signals to DMX decoders within the same DMX line. This is ideal for setups that need wired lighting controls.
The panel can also operate as an RF 2.4G remote. This allows the panel to communicate wirelessly with compatible RF 2.4G LED receivers, making the control layout flexible and eliminating the need for wired controls. This is ideal for projects where wiring is not feasible or not advisable.
You can connect this panel with any DMX decoder you have available, since it follows the standard DMX512 protocol.
Four-Zone Control with Scene Recall
This panel makes it easier to control different sets of lights by dividing the space into four zones. This division can be between different functional areas within a room or between different rooms altogether. You can easily switch between zones and adjust the lighting separately or, when needed, adjust all the zones at once.
A scene recall function is also added to the panel. This helps you save your preferred lighting settings for different occasions or activities and recall them with a single touch on the panel when needed. With this feature, you only need to manually adjust your lights at the beginning; after that, one touch is all it takes. These features are particularly useful in larger rooms and multi-purpose areas where lighting requirements vary with how the space is used.
RGB Colour Plus a Dedicated White Channel

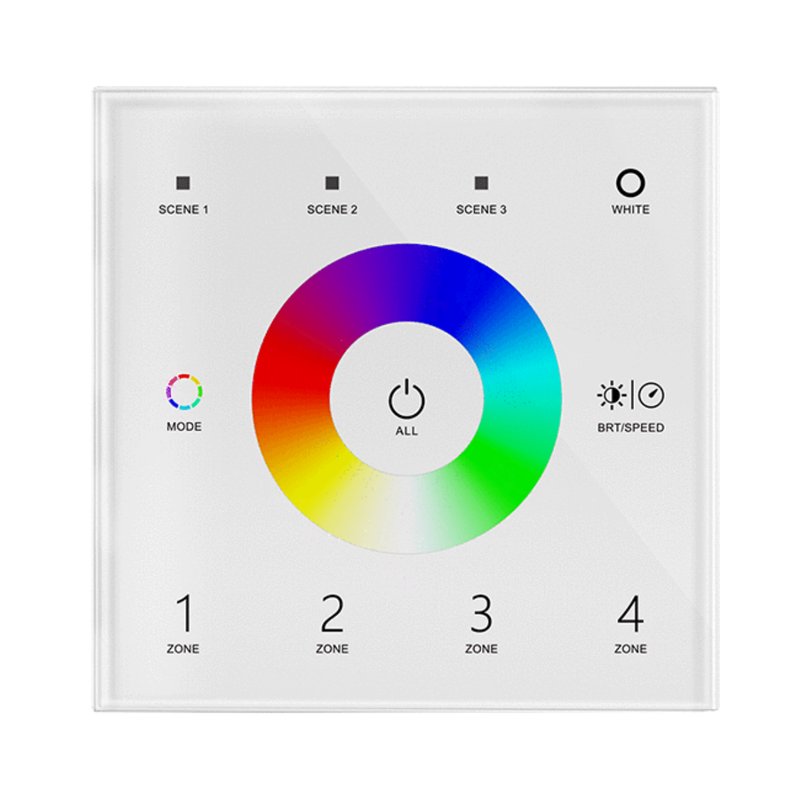

The glass touch colour wheel provides smooth, accurate control of your RGB colour mixing, while a separate white channel gives you a greater range than standard RGB-only controllers.
The dedicated white LEDs can produce cleaner whites and softer pastel tones than colours created solely by mixing red, green, and blue (RGB), helping the lighting look more natural and less overly saturated.
Light adjustment is divided into 256 levels from 0% to 100%. Everything is done through touch on the ultra-sensitive, high-strength glass surface, while an LED indicator provides clear visual feedback on your input. The result is a quick, smooth lighting configuration.
Each touch also triggers a chord prompt tone as audible feedback. This feature can be switched off if a silent operation is preferred.
Pairs With Our 4-Channel RGBW Decoders
Our 4-channel RGBW decoders are the natural match for this panel and the connected RGBW LED strips, as the four output channels correspond with the red, green, blue, and white colours.
Its primary function is to serve as the controller in a DMX lighting system. So it doesn't directly power the connected LED load, meaning a decoder is needed between the panel and the lighting to receive the control signal and control the LEDs' output. Retrofitting projects with existing DMX decoders can benefit from this panel, as it pairs with most standard DMX512 decoders.
On the other hand, when the panel is used in RF mode, the arrangement works differently. It wirelessly controls compatible RF 2.4G receivers instead. This is ideal for installations where a wired connection is not feasible or preferred.

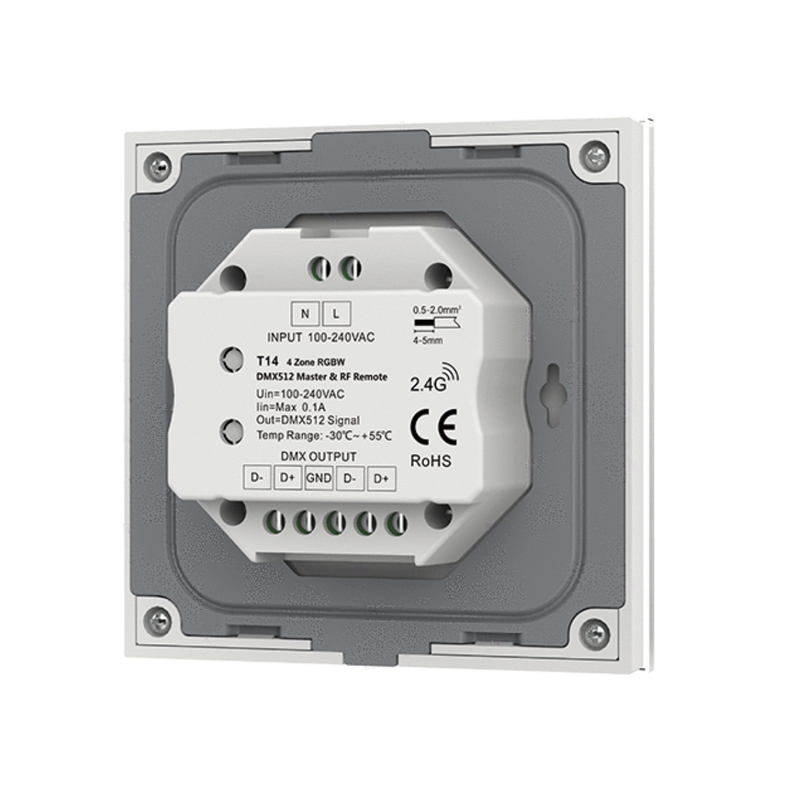

Mains-Powered Wall Installation
The panel is mains-powered, which means you can connect it directly to the mains circuit (100-240V AC). There's no need for a separate power supply or driver, keeping installation quick and simple.
On top of this, the panel fits a standard European wall box and can be installed in the same general position as a conventional light switch. So, whether you're upgrading or installing from scratch, the installation should be within your installer's capabilities. As the unit requires a mains connection, wiring should be completed only by a qualified electrician for safety and compliance purposes.
The panel comes in a white finish, allowing it to blend well with most modern interior designs, whether in residential or commercial settings.
Built to Last, with a 5-Year Warranty
As proof of its high-quality build, the panel carries CE, RoHS, and RED approvals. It is also in compliance with standards, including EN 62368-1, ETSI EN 301 489, and ETSI EN 300 328. These cover safety, electromagnetic capability, and radio equipment performance.
The panel also comes with an IP20 rating, making it an ideal fixture for various indoor applications at temperatures ranging from -30°C to +55°C. The IP rating means that it should not be installed outdoors or in high-moisture indoor areas.
Backed by a 5-year warranty and more than 14,000 five-star reviews across Google, Trustpilot, and Reviews.io, this panel offers confidence and peace of mind in its quality and performance.
