DMX512 Master and RF 2.4G Remote in One Panel
This 4-zone RGB+CCT touch panel offers two control methods via a single interface. This makes it easier to design a lighting system tailored to your space's needs.
When used as a DMX512 master, the panel sends a standard DMX control signal to compatible decoders within the same DMX line. The panel becomes the central control point for colour and tunable white lighting.
It complies with the standard DMX512 protocols, so system compatibility is not an issue. This means you can pair this with any compatible DMX decoders, especially those in our own range.
Not only that, but the panel can also operate as an RF 2.4G remote. In this setup, each zone can communicate wirelessly with compatible RF 2.4G LED receivers. This removes the need for control wiring between the panel and receiver.
Four-Zone Control with Scene Recall
You can set four independent “zones” to make it easier to manage lighting across a space that has multiple functional areas or when you have several separate circuits. Each zone can be controlled individually, or all four can be adjusted together. This is particularly useful in larger rooms, open-plan interiors, and commercial spaces. One control point for several distinct lighting areas.
Another added convenience to everyday use is the scene recall function. When you have a preferred combination of colour and white light, you can save it to one of the three scene recall keys. You can then easily recreate the same lighting settings with a single touch, without having to manually enter them all the time.

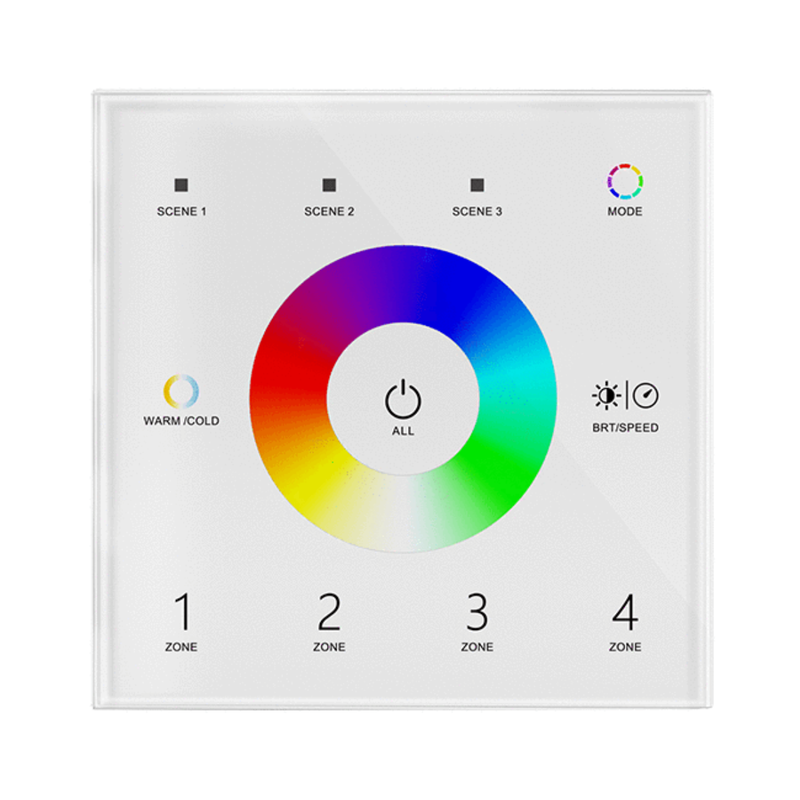

RGB and Tunable White from a Glass Colour Wheel
The glass touch colour wheel provides direct control over both coloured light and tunable white. You can move smoothly through different shades, then adjust the white light from warmer to cooler tones to suit the space’s needs. If the installation requires decorative colour alongside functional white lighting, this panel is ideal for eliminating the need for separate controllers.
There are 256 levels of adjustment from 0% to 100%, so the transition between colours or temperatures feels smooth and gradual rather than abrupt. The LED indicator on the glass surface also provides clear visual feedback, making control easier. Alongside this, there’s an audible chord prompt tone every time the panel is touched, letting you know changes are being made. If silent operation is preferred, this can be turned off.
Pairs With Our 5-Channel RGB+CCT Decoders
As a DMX master, a DMX decoder is required at the output end to receive instructions from the panel and control the lighting accordingly. The panel will not serve as a direct power source for the connected LED lighting.
For the RGB+CCT LED strip, our 5-channel RGB+CCT decoders pair naturally with the panel. Their channel arrangement is designed for the separate red, green, blue, warm white, and cool white elements.
When retrofitting, the panel also follows the standard DMX512 protocol, so it can work with other DMX12 decoders already existing in the space. When it is used in RF mode, the setup works differently. Instead of sending a wired DMX signal to a decoder, it wirelessly controls compatible 2.4G RF receivers.

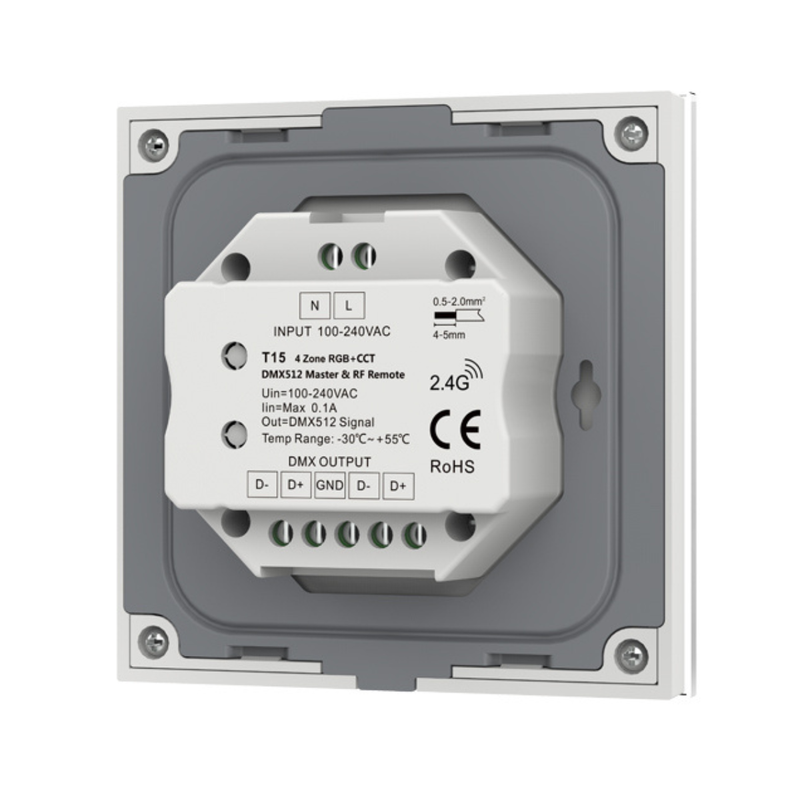

Mains-Powered Wall Installation
The panel is designed for permanent wall installation and is mains-powered at 100-240V AC, so there’s no need for a separate low-voltage power supply or driver. This means fewer components to worry about during installation. Get a qualified electrician to work on the connection for safety and compliance.
Installing the panel is basically like installing a traditional light switch, since it fits into any standard European wall box. This makes it a practical choice for retrofitting projects, since there’s no need to cut new holes when existing wall boxes are available.
New installs also benefit, since there’s no need for special components to fit the panel cleanly within modern residential and commercial interiors. The white finish also helps the panel blend well into modern spaces.
Built to Last, with a 5-Year Warranty
Designed to operate across temperatures from -30°C to +55°C, this touch panel can be used in a range of environments, provided they’re indoors and dry, as it has an IP20 rating. This makes the panel ideal for both residential and commercial settings.
For added confidence in its quality and safety, the controller carries CE, RoHS, and RED approvals. Its electromagnetic compatibility is covered by ETSI EN 301 489, while its radio operation (for remote control) complies with ETSI EN 300 328.
A 5-year warranty adds long-term peace of mind during and after installation, giving you the confidence that the panel will work as intended throughout its lifespan. It is also backed by the supplier’s more than 14,000 five-star reviews on trusted platforms such as Google, Trustpilot, and Reviews.io.
