Screw-Terminal DMX Wiring for Flexible, Connector-Free Installs

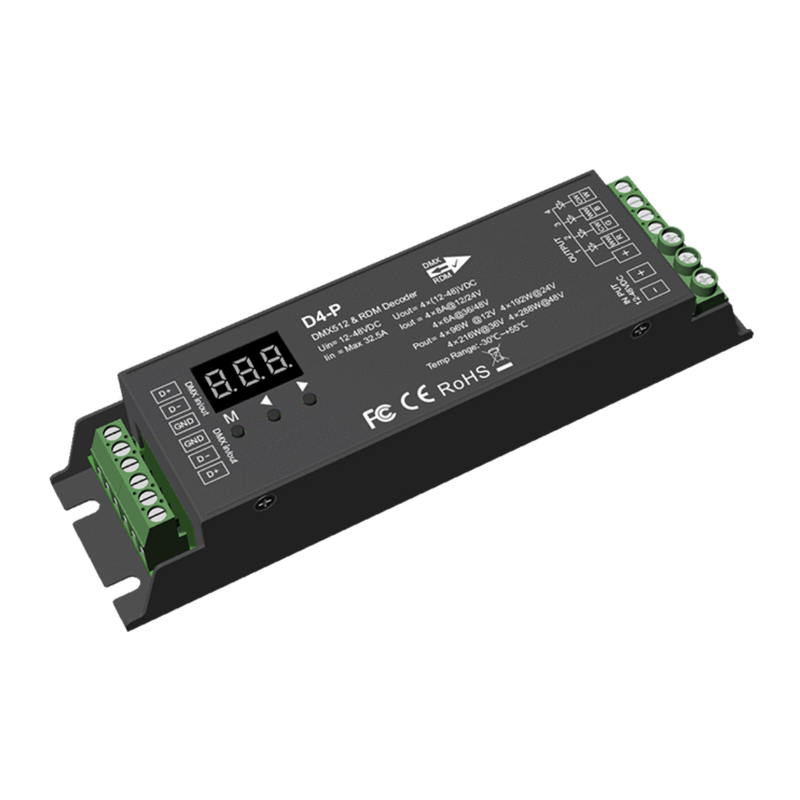

The standout advantage of this decoder is its pluggable green screw-terminal DMX input and output ports. This gives you a practical alternative to connector-based systems since there’s no soldering or special connectors required. You can simply insert bare conductors directly into the terminals, making it useful for retrofit projects or existing lighting systems where connector compatibility may be an issue.
With the input and output ports, you can daisy-chain multiple decoders. This allows the control signal to pass neatly from one unit to the next while keeping cable management clean, which is always a plus.
Standard DMX installation practices should still be followed to maintain reliable communication throughout the network. That’s why installations that exceed 32 connected decoders, or cable runs that become particularly long, require a DMX signal amplifier, and a terminal resistor should be fitted at the end.
DMX512 and RDM Control with On-Unit Addressing
This decoder supports the standard DMX512 protocol, providing reliable one-way lighting control. In addition, it features an RMD (Remote Device Management) function that enables two-way communication. Simply put, this allows remote configuration of settings, which is convenient when working with a large lighting setup because you don’t have to physically access every decoder.
But if local configuration is still preferred, you can also find a digital numeric display with onboard buttons on the decoder itself, which you can use to set the DMX start address directly.
Furthermore, the decoder occupies four DMX addresses and allows the output configuration to be selected as 1, 2 or 4 channels depending on the connected lighting application. This makes it easier to match the controller to different fixture types.
4 Channel Constant Voltage Output for RGB and RGBW LED
Built specifically for constant voltage lighting systems, this decoder should not be used with constant current lighting systems to ensure reliable operation and prevent system failure or damage.
The four output channels make this decoder compatible with RGB and RGBW LED strip installations, giving you the flexibility to create vibrant colour-changing lighting effects while maintaining consistent performance.
The unit accepts a 12V-48V DC input, so it's suitable for different lighting system voltages. The output also varies with the voltage. You get 8A per channel at 12V or 24V, and 6A per channel at 36V or 48V.
This means that power capacity also scales with the input voltage, providing 96W, 192W, 216W or 288W per channel depending on the selected voltage, with a maximum combined output of 1152W at 48V.
Flicker-Free Dimming with Selectable PWM and 16-Bit Control
The decoder helps produce smoother fades, cleaner transitions, and more refined colour changes for your lighting setup. The option for higher PWM frequencies (ranging from 250Hz to 32kHz) also helps minimise visible flicker, which is very useful in spaces focused on photography and video recording, as the lighting appears more stable on camera.
For even greater precision, the decoder allows you to choose between 8-bit (256 levels) and 16-bit (65,536 levels) grey scale control. The higher grey scale provides much finer dimming resolution and smoother colour transitions, particularly at lower brightness levels. You can also select either a logarithmic (gamma 1.6) or linear (gamma 1.0) dimming curve to better match the desired visual effect.
Self-Test Mode and Full Built-In Protection
Practical features like the self-test mode are useful functions that automatically become available when the incoming DMX signal is interrupted. If that happens, the L-1 to L-5 test modes light the four output channels individually or simultaneously, making it easy to identify connection issues. This feature does not interfere with normal lighting controls.
The decoder also comes with multiple built-in electrical protections against overheating, overload, short circuit, and reverse polarity. It also includes automatic recovery once the fault is resolved.
Housing all these protection systems is a durable iron-shell casing with a quick heat sink that dissipates heat efficiently, maintaining steady performance at higher output, even under demanding operating conditions and during extended use.
Compact Iron-Shell Design with Long-Term Reliability
High performance does not mean bulky components, especially since this decoder measures just 178 x 50 x 38mm. The slim build means you can position the unit even in tight areas without worrying about it taking up valuable space or being too bulky. It also comes with an IP20 protection rating, making it ideal for dry indoor installations, and is designed to operate in temperatures ranging from -30°C to +55°C.
When it comes to reliability, the decoder is manufactured to meet recognised CE, RoHS, and FCC certification requirements, including compliance with EN IEC 55015, EN IEC 61547, EN 61347-1/-2 and EN 62493. As a complete package, every decoder comes with a 5-year warranty and more than 14,000 five-star reviews across platforms such as Google, Trustpilot, and Reviews.io.
