Five Channels for RGB and Tunable White in One Decoder
This decoder is designed specifically for RGB+CCT LED strip lighting, which is why it provides five dedicated output channels to independently control red, green, blue, warm white, and cool white LEDs from a single unit. With this feature, you no longer need to rely on separate controllers for coloured lighting and adjustable white light.
Compared to standard RGB or RGBW systems, you get far greater flexibility by combining full colour control with adjustable colour temperature. This means your lights can transition smoothly between vibrant colours and precisely tuned white light throughout the day.
This decoder is best suited to RGB+CCT LED strips, sometimes referred to as RGBWW strips, in which separate warm white and cool white LEDs allow independent adjustment of colour temperature.

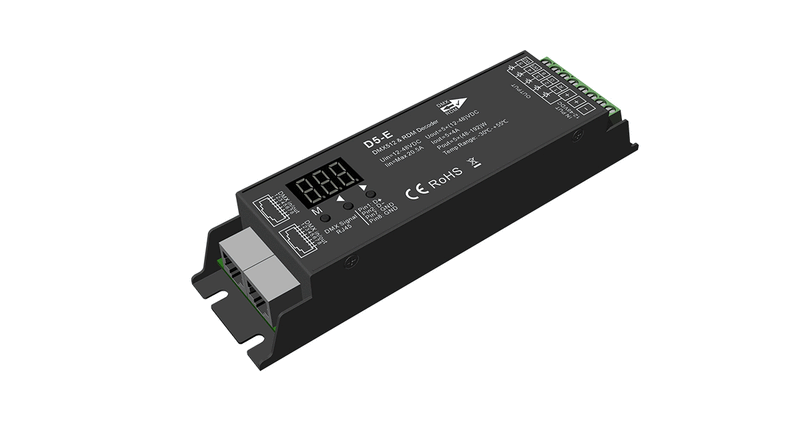

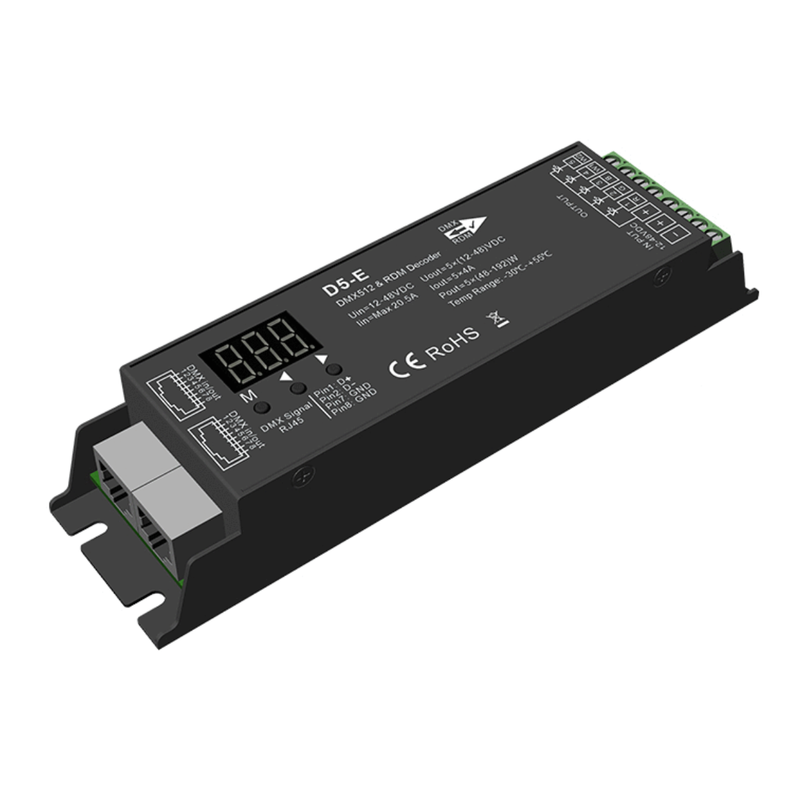

RJ45 DMX Wiring for Fast, Reliable Daisy-Chaining
With the integrated RJ45 input and output ports, you get a straightforward way to distribute DMX signals using standard network cables. The plug-in connections help reduce installation time, while also creating a neat, organised look. This keeps your project’s wiring simple and consistent.
You can also daisy-chain multiple compatible decoders along a single DMX line. This is helpful when working with larger lighting systems that require operating multiple lighting zones. Expanding the setup when needed is made easy with this feature, as each decoder connects directly to the next without unnecessary wiring complexity.
But keep in mind that installations exceeding 32 decoders or covering particularly long cable runs should include a suitable DMX signal amplifier.
DMX512 and RDM Control with On-Unit Addressing
It doesn’t matter whether you’re installing a new lighting system or reconfiguring an existing one, as this decoder supports both standard DMX512 and RDM (Remote Device Management) controls.
RDM enables two-way communication between the decoder and the DMX controller and allows remote configuration of the devices connected to the decoder. This means that there’s no need to manually access every decoder, saving you a lot of time, especially when working on larger installations.
But if you prefer local configuration, the integrated digital numeric display and control buttons allow you to set the DMX start address directly on the unit. This gives you quick confirmation that the correct address has been assigned, helping minimise setup errors during installation.
5 Channel Constant Voltage Output for High-Power LED Strip Installations
This decoder delivers a dedicated output of 4A across each of its five channels and accepts a wide 12V to 48V DC input range. That means you get dependable performance for any professional LED strip installation, regardless of the system voltage. If the installation uses different voltage systems in different applications, there’s no need to get a separate decoder.
When using a 48V DC supply, the power output can reach up to 192W per channel and an impressive 960W total, which is ideal for larger lighting setups and installations covering multiple zones.
As with choosing LED drivers, it’s critical to match the decoder to a compatible constant voltage LED strip to ensure the whole setup works as intended.
Flicker-Free Dimming with Selectable PWM and 16-Bit Control
When lighting for spaces that cater to photography, video recording, or high-end visual presentation, a high PWM frequency is ideal for minimising visible flicker. The decoder allows the PWM frequency to be selected from 250Hz up to 32,000Hz. This means smooth dimming and accurate colour transition even in low brightness.
Not only that, but the decoder also supports both 8-bit and 16-bit grey scale control to further improve lighting precision. While 8-bit control provides 256 dimming levels, 16-bit control increases this to 65,536 levels, allowing significantly finer adjustments for smoother fades.
Furthermore, you can choose between logarithmic and linear dimming curves to match the lighting response to the specific requirements of your installation.
Full Built-In Protection with Long-Term Reliability
Multiple layers of built-in protection are built into this decoder to help safeguard both the controller and the connected lighting system. You can install this with peace of mind knowing it comes with reverse polarity, overheat, overload, and short-circuit protection. It even has an automatic recovery feature that allows normal operation to resume once the fault has been resolved.
The decoder carries an IP20 rating for indoor use and an operating temperature range of -30°C to +55°C, making it suitable for a wide variety of indoor environments. It’s also CE and RoHS approved and complies with the EN IEC 55015, EN IEC 61547, and EN 61347 standards.
Furthermore, it’s backed by a 5-year warranty and has over 14,000 five-star reviews across platforms such as Google, Trustpilot, and Reviews.io, offering reassurance for dependable lighting control.
